Description

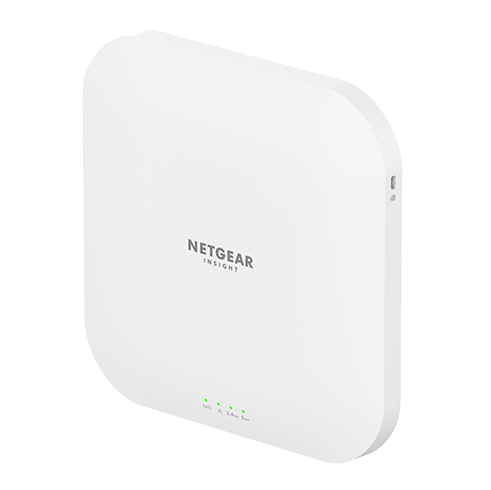

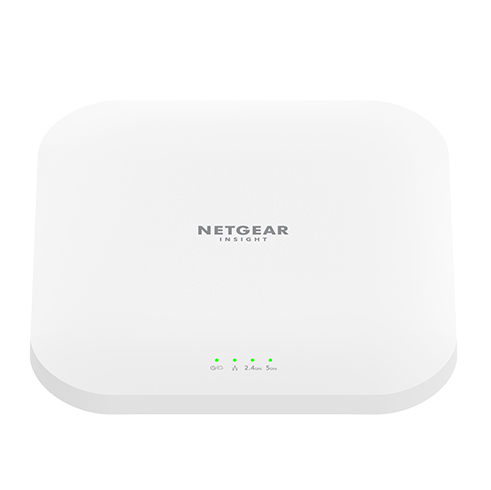

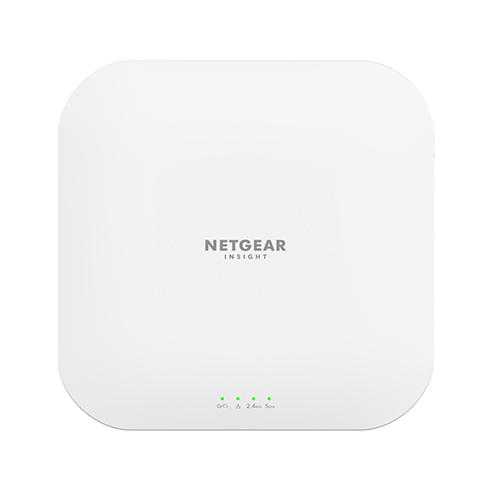

NETGEAR WAX620, 2.4 GHz, 5 GHz, 3600 Mbit/s, EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3, 100,1000,2500 Mbit/s

Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business.

High-Performance Business WiFi Faster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band

Ideal for High Density Environments Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.

Greater Network Capacity Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.

Seamless Wireless Mesh Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.

Multi-Gigabit Speed Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring

Easy Setup Set up, configure, and manage with NETGEAR Insight

Flexible Mounting Easy to securely install on the wall of a suspended ceiling with the hardware included

Business-Level Security WPA3 for the highest level of WiFi connection security

8 Wireless Networks (SSIDs) Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more

Separate VLANs Keep admin, employee, visitor, HR, Finance department networks safely separated from each other

Specifications

BrandNETGEAR
Manufacturer part no.WAX620-100EUS
Our part no.CB06936
EAN0606449154511
CategoryNetworking › Wireless Access Points
Weight1 kg
Features
2.4 GHzYes
5 GHzYes
Maximum data transfer rate3600 Mbit/s
Maximum data transfer rate (2.4 GHz)1200 Mbit/s
Maximum data transfer rate (5 GHz)2400 Mbit/s
Ethernet LAN data rates100,1000,2500 Mbit/s
Networking standardsIEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Auto MDI/MDI-XYes
MIMOYes
MIMO typeMulti User MIMO
ModulationOFDM
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Security
Security algorithmsEAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
MAC address filteringYes
Auto Wireless Distribution System (WDS)Yes
Management features
Web-based managementYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Power
Power over Ethernet (PoE)Yes
Output voltage12 V
Output current2.5 A
Design
PlacementCeiling, Wall
Product colourWhite
LED indicatorsLAN, Power, WLAN
Antenna
Antenna typeInternal
Antenna gain level (max)4.3 dBi
Weight & dimensions
Width205.7 mm
Depth205.7 mm
Height34.3 mm
Weight783 g
Packaging content
Quantity per pack1 pc(s)
Mounting kitYes
Quick start guideYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Logistics data
Harmonized System (HS) code85176990
