Description

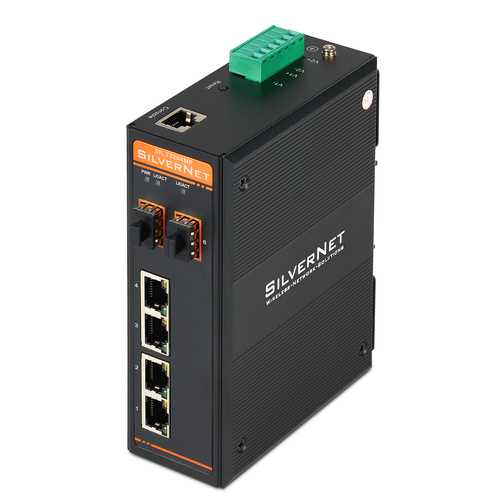

SilverNet SIL 73204MP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

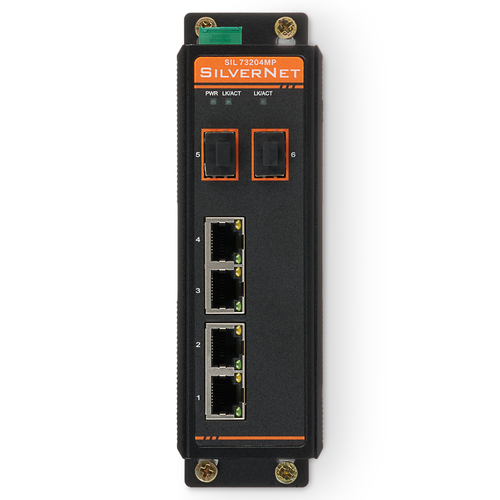

The SIL 73204MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, designed for deployment in harsh environments due to its rugged industrial design.
It features 4 x 10/100/1000Base-T ports and 2 x 1000Base-FX SFP slots.
This Switch boasts several intelligent features such as dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability.
The 73204MP provides a versatile solution for extending Ethernet over distances via fiber daisy chaining, eliminating the need for separate power supplies for IP video cameras and wireless access points. It also operates within an extended temperature range, suitable for outdoor cabinets and demanding industrial settings.
Adhering to the IEEE802.3af/at standard, it enables Power-over-Ethernet delivery over twisted pair cables.
Additionally, the switch includes two fiber optic ports with a modular SFP slot that accommodates any MSA-compliant pluggable 1.25Gbps SFP transceiver.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL 73204MP |
| Our part no. | CB09712 |
| EAN | 5060693981616 |
| Category | Networking › Switches |
| Weight | 0.9 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| User operation log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Cable types supported | Cat5e, Cat6 |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Number of VLANs | 4095 |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Password protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | No |
| Stackable | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| Temperature sensor | Yes |
| Reset button | Yes |
| LED indicators | LAN, PoE, Power |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |

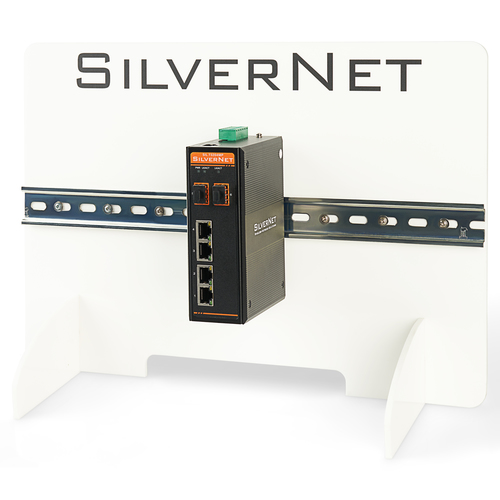

| DIN rail mounting | Yes |
| Performance | |
| Minimum system requirements | Internet Browser |
| Power | |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| DC input voltage | 9 - 56 V |
| Power consumption (typical) | 7 W |
| Power consumption (max) | 15 W |
| Power protection features | Overload, Reverse polarity |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, PoE+ |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 120 mm |
| Height | 40 mm |
| Weight | 600 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 166 mm |
| Package depth | 225 mm |
| Package height | 80 mm |
| Package weight | 890 g |
| Certificates | |
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
