Description

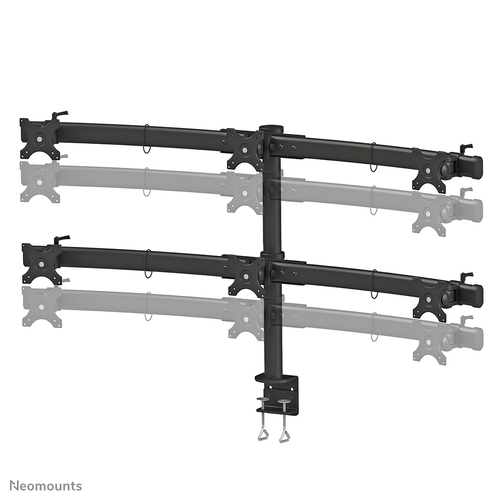

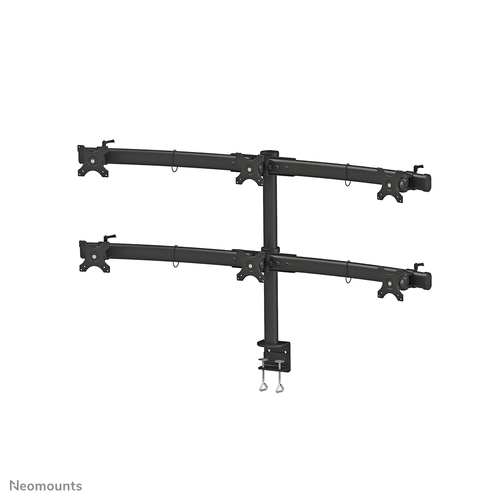

Neomounts FPMA-D700D6 Monitor arm 19-27", Clamp, 8 kg, 48.3 cm (19"), 68.6 cm (27"), 100 x 100 mm, Black

The Neomounts desk mount, model FPMA-D700D6 is a tilt-, swivel and rotatable desk mount for 6 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp.

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 22 to 70 centimetres. Depth 7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D700D6 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D700D6
Our part no.CB16138
EAN8717371445560
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight17 kg
Mounting
Maximum weight capacity8 kg
Minimum screen size48.3 cm (19")
Number of displays supported6
Maximum weight capacity (per display)8 kg
Maximum screen size68.6 cm (27")

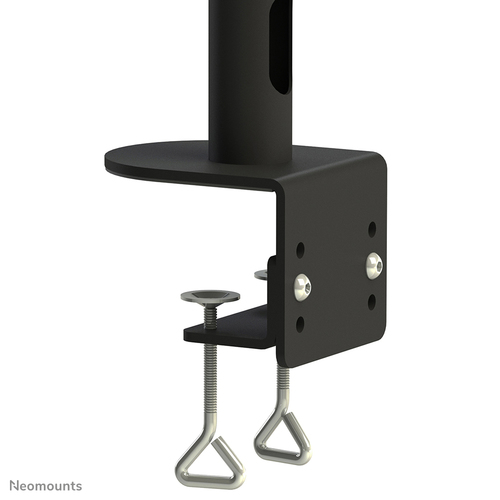

MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (max)9 cm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range220 - 700 mm
Depth adjustment range0 - 70 mm
Width adjustment129 cm
Tilt adjustmentYes
Tilt angle range0 - 180°
SwivellingYes
Swivel angle180°
Swivel angle range0 - 180°
RotatingYes
Angle of rotation360°
Design
Housing materialSteel
Product colourBlack
Weight & dimensions
Depth70 mm
Height700 mm
Weight16.3 kg
Packaging data
Package width880 mm
Package depth275 mm
Package height220 mm
Package weight16.8 kg
Other features
Width adjustment range0 - 1290 mm
Logistics data
Master (outer) case width880 mm
Master (outer) case length275 mm
Master (outer) case height220 mm
Master (outer) case gross weight18.1 kg
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case net weight16.8 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)27 pc(s)
