Description
Neomounts NS-WMB200BLACK Menuboard wall mount 40-52" - tiltable, 101.6 cm (40"), 132.1 cm (52"), 200 x 200 mm, 600 x 400 mm, 0 - 480 mm, 0 - 20°

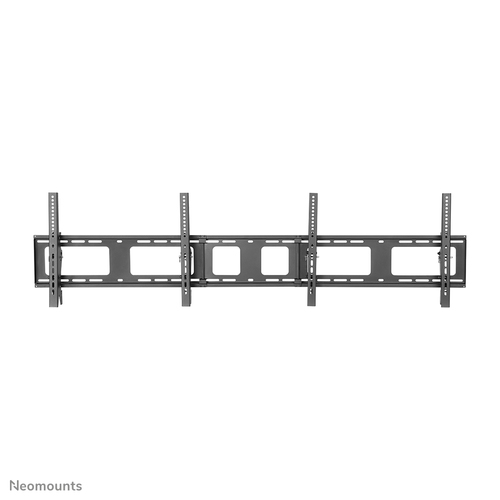

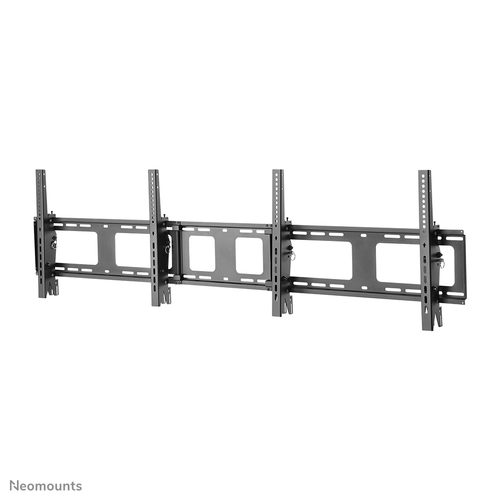

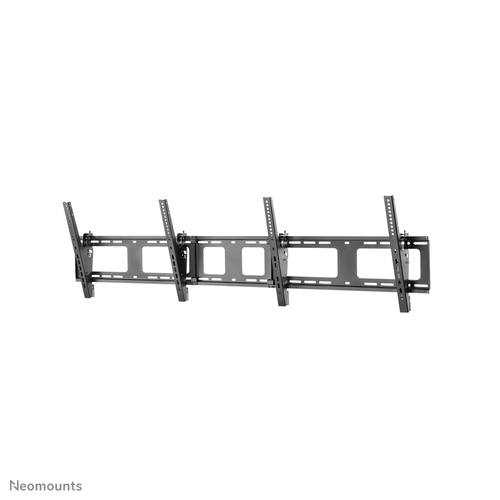

The Neomounts menu board wall mount, model NS-WMB200BLACK is a tiltable wall mount for two flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts tilt (0°/-5°/-10°/-15°/-20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7,8 centimetres.
Neomounts NS-WMB200BLACK is suitable for 2 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400 mm.
All installation material is included with the product.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | NS-WMB200BLACK |
| Our part no. | CB16211 |
| EAN | 8717371447373 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 10.6 kg |
| Mounting | |
| Minimum screen size | 101.6 cm (40") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum screen size | 132.1 cm (52") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400 |
| Ergonomics | |
| Height adjustment range | 0 - 480 mm |
| Tilt angle range | 0 - 20° |
| Swivel angle | 6° |
| Angle of rotation | 6° |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Tilt angle | 20° |
| Height adjustment | 48 cm |
| Width adjustment | 180 cm |
| Distance to the wall (min) | 7.8 cm |
| Distance to the wall (max) | 7.6 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 1800 mm |
| Height | 48 mm |
| Weight | 9.39 kg |
| Width adjustment range | 0 - 1800 mm |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 165 mm |
| Package height | 740 mm |
| Package weight | 10.9 kg |
| Technical details | |
| Package net weight | 10.9 kg |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Master (outer) case net weight | 10.9 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 45 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 240 mm |
| Master (outer) case length | 165 mm |
| Master (outer) case height | 740 mm |
| Master (outer) case gross weight | 10.9 kg |
| Products per master (outer) case | 1 pc(s) |
