Description

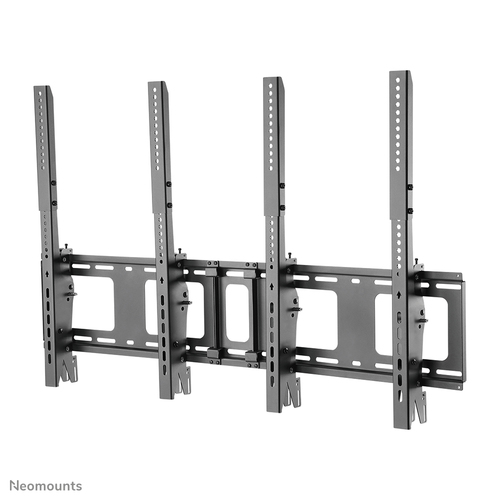

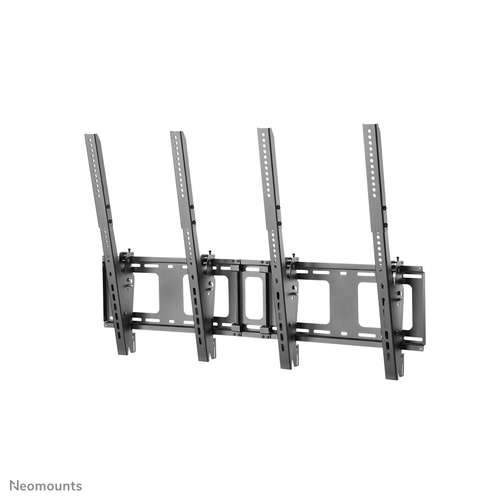

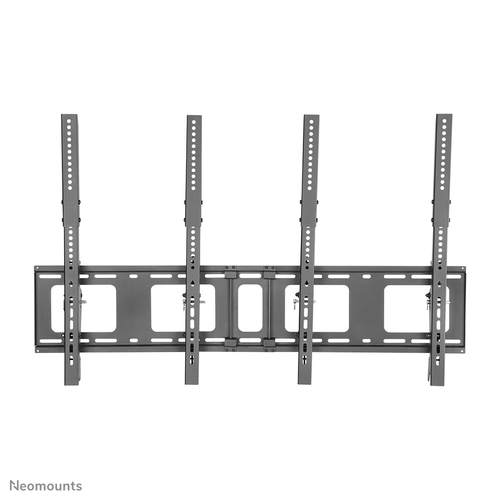

Neomounts NS-WMB200PBLACK Menuboard wall mount 40-52" - tiltable - portrait, 101.6 cm (40"), 132.1 cm (52"), 200 x 200 mm, 400 x 600 mm, 0 - 680 mm, 0 - 10°
The Neomounts menu board wall mount (vertical mounting), model NS-WMB200PBLACK is a tiltable wall mount for two flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts tilt (0°/-5°/-10°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7,8 centimetres.
Neomounts NS-WMB200PBLACK is suitable for 2 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 400x600 mm (vertical mounting).
All installation material is included with the product.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | NS-WMB200PBLACK |
| Our part no. | CB16250 |
| EAN | 8717371447366 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 10.2 kg |
| Mounting | |
| Minimum screen size | 101.6 cm (40") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum screen size | 132.1 cm (52") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 600 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400 |
| Ergonomics | |
| Height adjustment range | 0 - 680 mm |
| Tilt angle range | 0 - 10° |
| Swivel angle | 6° |
| Angle of rotation | 6° |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Tilt angle | 10° |
| Height adjustment | 68 cm |
| Width adjustment | 110 cm |
| Distance to the wall (min) | 7.8 cm |
| Distance to the wall (max) | 7.8 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 1100 mm |
| Height | 68 mm |
| Weight | 9.16 kg |
| Width adjustment range | 0 - 1100 mm |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 165 mm |
| Package height | 540 mm |
| Package weight | 10.5 kg |
| Technical details | |
| Package net weight | 10.5 kg |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Master (outer) case net weight | 10.5 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 60 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 165 mm |
| Master (outer) case height | 540 mm |
| Master (outer) case gross weight | 10.5 kg |
| Products per master (outer) case | 1 pc(s) |
