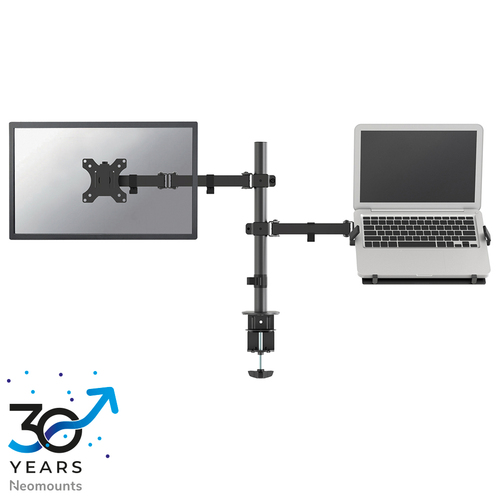

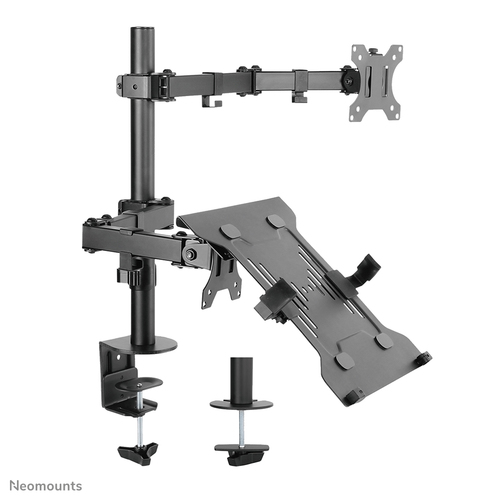

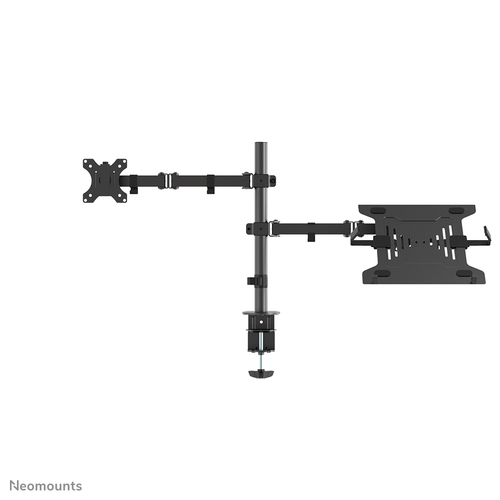

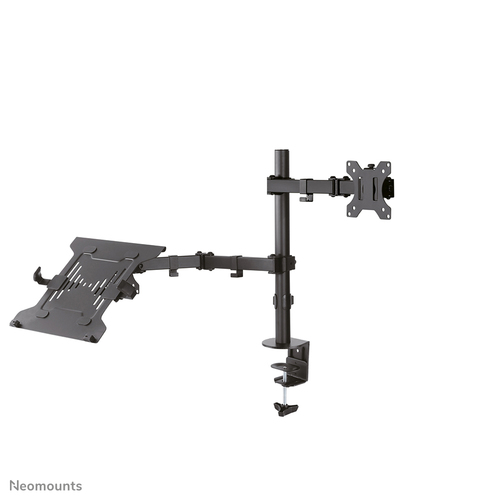

Neomounts FPMA-D550NOTEBOOK Monitor arm with laptop holder 10-32", Clamp/Grommet, 8 kg, 25.4 cm (10"), 81.3 cm (32"), 100 x 100 mm, Black

The Neomounts desk mount, model FPMA-D550NOTEBOOK is a tilt-, swivel and rotatable desk mount for flat screens up to 32" notebooks up to 15,6". This mount is a great choice for space saving placement on desks using a desk clamp or grommet.

Neomounts' unique tilt (+45°/-45°), swivel (180°) and rotate (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 52 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D550NOTEBOOK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg for the screen and 4,5 kg for the notebook. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D550NOTEBOOK
Our part no.CB16286
EAN8717371446413
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight6.2 kg
Mounting
Maximum weight capacity8 kg
Minimum screen size25.4 cm (10")
Number of displays supported1
Maximum weight capacity (per display)8 kg
Maximum screen size81.3 cm (32")
MountingClamp/Grommet
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (min)1 cm
Desk thickness (max)8.8 cm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range0 - 440 mm
Depth adjustment range40 - 520 mm
Tilt adjustmentYes
Tilt angle range0 - 90°
SwivellingYes
Swivel angle180°
Swivel angle range0 - 180°
RotatingYes
Angle of rotation360°
Number of pivot points3
Cable managementYes
Design
Housing materialSteel
Product colourBlack
Weight & dimensions
Depth520 mm
Height548 mm
Weight5.67 kg
Packaging data
Package width295 mm
Package depth116 mm
Package height465 mm
Package weight6.3 kg
Logistics data
Master (outer) case width310 mm
Master (outer) case length370 mm
Master (outer) case height480 mm
Master (outer) case gross weight6.3 kg
Products per master (outer) case3 pc(s)
Country of originChina
Master (outer) case net weight5.2 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)55 pc(s)
