Description

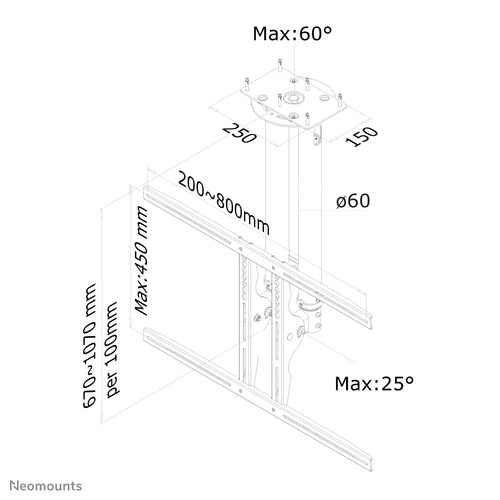

Neomounts PLASMA-C100 Monitor/TV mount ceiling 37-75" - h 67-107 cm, 200 x 200 mm, 800 x 450 mm, 0 - 25°, 0 - 60°, Steel, Silver

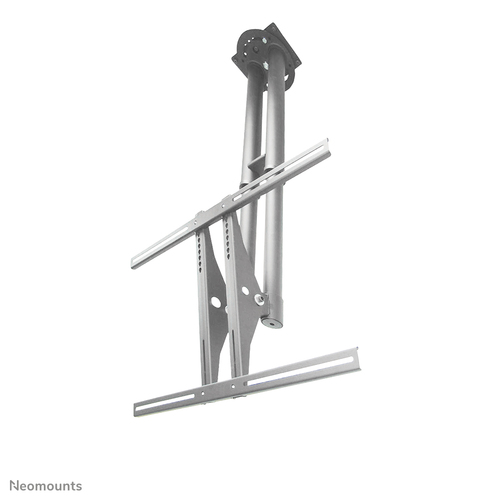

The Neomounts ceiling mount, model PLASMA-C100 is a tilt- and swivel ceiling mount for flat screens up to 75" (191 cm). This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 67 to 107 centimetres. If different heights are needed extension poles are available. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts PLASMA-C100 has one pivot point and is suitable for screens up to 75" (191 cm). The weight capacity of this product is 50 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 200x200 to 800x450mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | PLASMA-C100 |
| Our part no. | CB16310 |
| EAN | 8717371441067 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 0 kg |
| Mounting | |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum screen size | 190.5 cm (75") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 450 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,680 x 300,800 x 200,800 x 400 |
| Mounting type | Ceiling |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 670 - 1070 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 25° |
| Swivelling | Yes |
| Swivel angle | 60° |
| Swivel angle range | 0 - 60° |
| Tilt angle | 25° |
| Distance to the wall (min) | 7.8 cm |
| Design | |
| Product colour | Silver |
| Housing material | Steel |
| Technical details | |
| Country of origin | Taiwan |
| Weight & dimensions | |
| Depth | 80 mm |
| Height | 1070 mm |
| Weight | 16.6 kg |
| Packaging data | |
| Package width | 880 mm |
| Package depth | 260 mm |
| Package height | 280 mm |
| Package weight | 17.5 kg |
| Logistics data | |
| Master (outer) case width | 880 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 18.3 kg |
| Master (outer) case net weight | 17.5 kg |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 21 pc(s) |
| Other features | |
| Depth adjustment range | 0 - 80 mm |
