Description

Neomounts FPMA-D1030D Monitor arm 10-24", Clamp, 7 kg, 25.4 cm (10"), 61 cm (24"), 100 x 100 mm, Silver

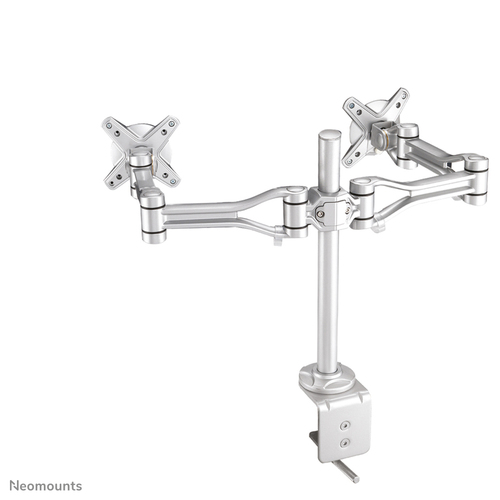

The Neomounts desk mount, model FPMA-D1030D is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 24". This mount is a great choice for space saving placement on desks using a desk clamp.

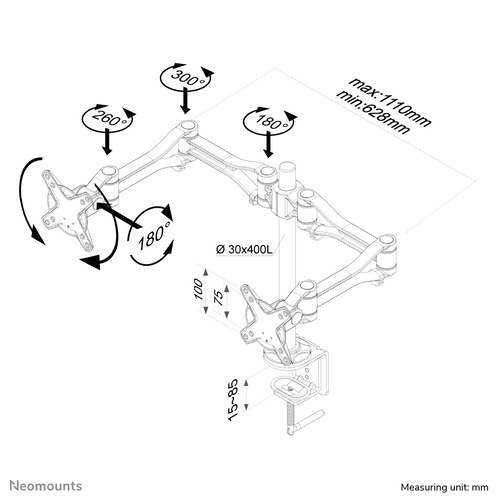

Neomounts versatile tilt (180°), rotate (180°) and swivel (300°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 40 centimetres. Depth adjustable from 16 to 55 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D1030D has three pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D1030D
Our part no.CB16330
EAN8717371441784
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight0 kg
Mounting
Maximum weight capacity7 kg
Minimum screen size25.4 cm (10")
Number of displays supported2
Maximum weight capacity (per display)7 kg
Maximum screen size61 cm (24")
MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (max)9 cm
Distance to the wall (min)16 cm
Distance to the wall (max)55 cm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range0 - 400 mm
Depth adjustment range160 - 550 mm
Tilt adjustmentYes
Tilt angle range0 - 180°
SwivellingYes
Swivel angle300°
Swivel angle range0 - 300°
RotatingYes
Angle of rotation180°
Design
Housing materialAluminium
Product colourSilver
Weight & dimensions
Height400 mm
Weight6.7 kg
Packaging data
Package width560 mm
Package depth410 mm
Package height170 mm
Package weight6.7 kg
Logistics data
Master (outer) case width560 mm
Master (outer) case length410 mm
Master (outer) case height170 mm
Master (outer) case gross weight7.6 kg
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case net weight6.7 kg
Harmonized System (HS) code7616991099
Products per pallet (EU)36 pc(s)
