Description
Neomounts FPMA-C400SILVER Monitor/TV mount ceiling 32-60" - h 64-104 cm, 200 x 200 mm, 600 x 400 mm, 0 - 25°, 0 - 60°, Steel, Silver

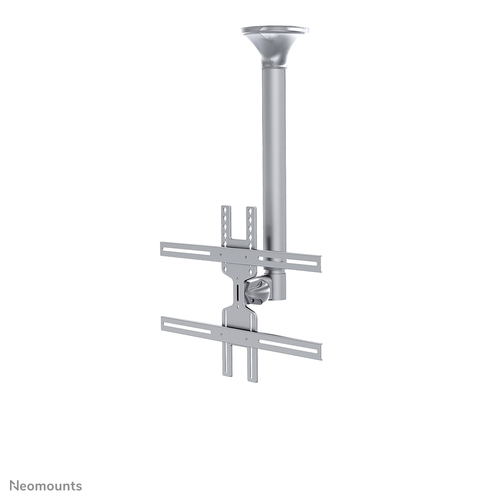

The Neomounts ceiling mount, model FPMA-C400SILVER is a tilt- and swivel ceiling mount for flat screens up to 60". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

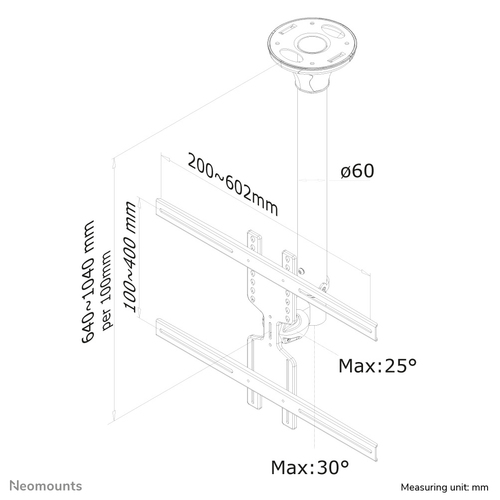

Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts FPMA-C400SILVER has two pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 35 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
All installation material is included with the product.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | FPMA-C400SILVER |
| Our part no. | CB16335 |
| EAN | 8717371442712 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 8.1 kg |
| Mounting | |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 35 kg |
| Maximum screen size | 152.4 cm (60") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400 |
| Mounting type | Ceiling |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 640 - 1040 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 25° |
| Swivelling | Yes |
| Swivel angle | 60° |
| Swivel angle range | 0 - 60° |
| Tilt angle | 25° |
| Design | |
| Product colour | Silver |
| Housing material | Steel |
| Technical details | |
| Country of origin | Taiwan |
| Weight & dimensions | |
| Depth | 80 mm |
| Height | 1040 mm |
| Weight | 7.7 kg |
| Packaging data | |
| Package width | 725 mm |
| Package depth | 200 mm |
| Package height | 220 mm |
| Package weight | 8.1 kg |
| Logistics data | |
| Master (outer) case width | 725 mm |
| Master (outer) case length | 200 mm |
| Master (outer) case height | 220 mm |
| Master (outer) case gross weight | 8.7 kg |
| Master (outer) case net weight | 8.1 kg |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 48 pc(s) |
| Other features | |
| Depth adjustment range | 0 - 80 mm |
