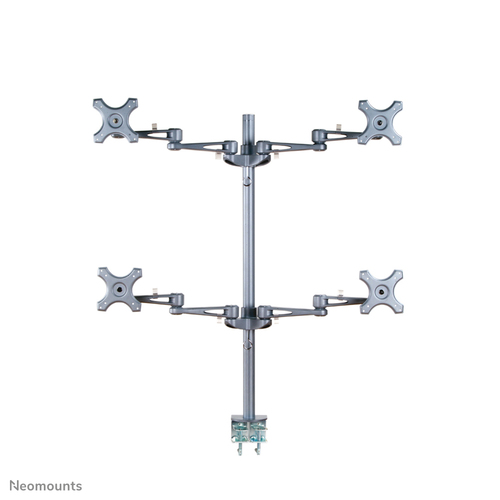

Neomounts FPMA-D935D4 Monitor arm 10-27", Clamp, 6 kg, 25.4 cm (10"), 68.6 cm (27"), 100 x 100 mm, Silver

The Neomounts desk mount, model FPMA-D935D4 is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp.

Neomounts versatile tilt (180°), rotate (360°) and swivel (300°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 80 centimetres. Depth adjustable from 12 to 50 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D935D4 has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D935D4
Our part no.CB16347
EAN8717371441722
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight9.9 kg
Mounting
Maximum weight capacity6 kg
Minimum screen size25.4 cm (10")
Number of displays supported4
Maximum weight capacity (per display)6 kg
Maximum screen size68.6 cm (27")
MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (max)10.5 cm
Distance to the wall (min)12 cm
Distance to the wall (max)50 cm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range0 - 800 mm
Depth adjustment range120 - 500 mm
Tilt adjustmentYes
Tilt angle range0 - 180°
SwivellingYes
Swivel angle300°
Swivel angle range0 - 300°
RotatingYes
Angle of rotation360°
Design
Housing materialAluminium
Product colourSilver
Weight & dimensions
Height800 mm
Weight8.8 kg
Packaging data
Package width840 mm
Package depth225 mm
Package height200 mm
Package weight9.2 kg
Logistics data
Master (outer) case width840 mm
Master (outer) case length225 mm
Master (outer) case height200 mm
Master (outer) case gross weight9.9 kg
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case net weight9.2 kg
Harmonized System (HS) code7616991099
Products per pallet (EU)40 pc(s)
