Description

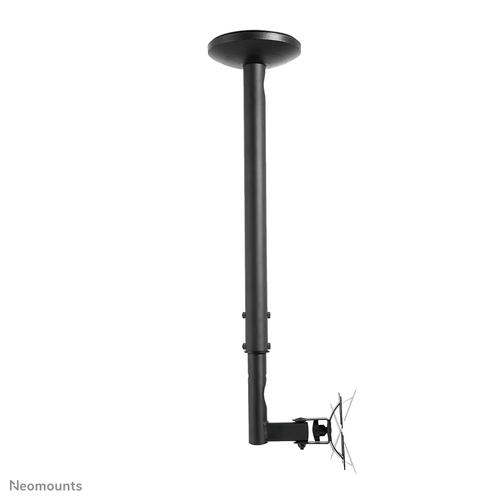

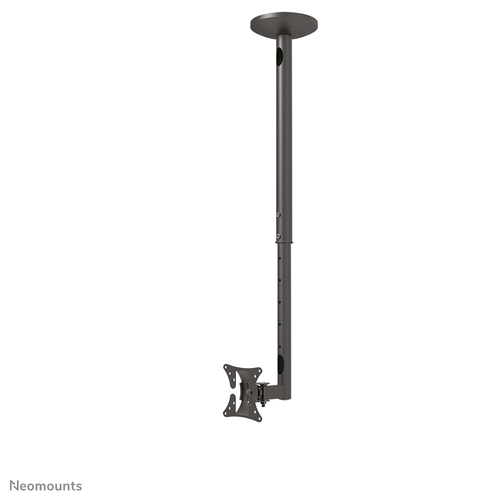

Neomounts FPMA-C050BLACK Monitor/TV mount ceiling 10-30" - h 60-85 cm, 50 x 50 mm, 100 x 100 mm, 0 - 40°, 0 - 180°, Steel, Black
The Neomounts ceiling mount, model FPMA-C050BLACK is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (40°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 50 to 85 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

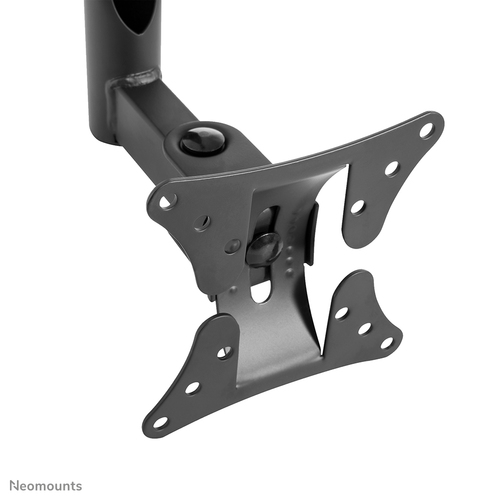

Neomounts FPMA-C050BLACK has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 50x50 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | FPMA-C050BLACK |
| Our part no. | CB16376 |
| EAN | 8717371442460 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 0 kg |
| Mounting | |
| Maximum weight capacity | 20 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 20 kg |
| Maximum screen size | 76.2 cm (30") |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,50 x 50,75 x 75 |
| Mounting type | Ceiling |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 600 - 850 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 40° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Swivel angle range | 0 - 180° |
| Tilt angle | 40° |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Package net weight | 1.54 kg |
| Weight & dimensions | |
| Depth | 130 mm |
| Height | 850 mm |
| Weight | 1.54 kg |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 60 mm |
| Package height | 530 mm |
| Package weight | 1.5 kg |
| Logistics data | |
| Master (outer) case width | 545 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 270 mm |
| Master (outer) case gross weight | 10.5 kg |
| Master (outer) case net weight | 7.7 kg |
| Products per master (outer) case | 5 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 120 pc(s) |
| Other features | |
| Depth adjustment range | 0 - 130 mm |
