Description

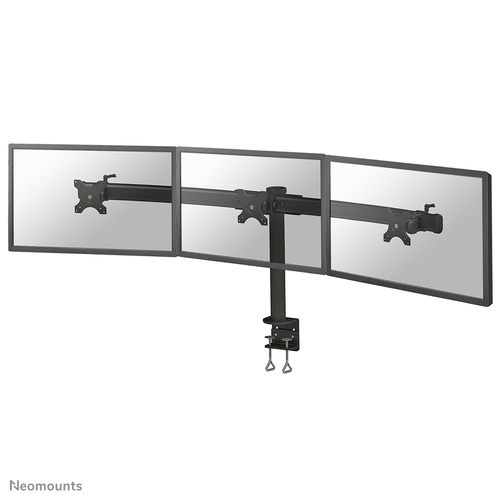

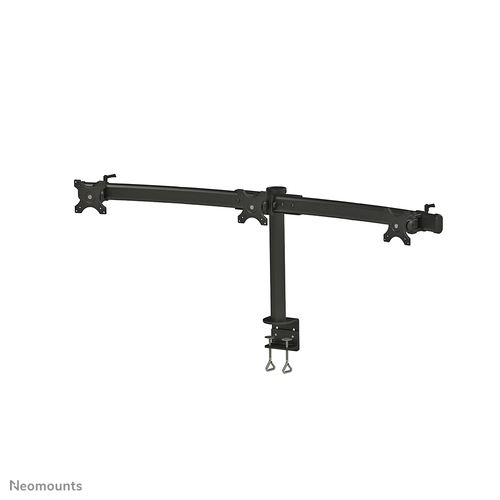

Neomounts FPMA-D700D3 Monitor arm 10-27", Clamp, 8 kg, 25.4 cm (10"), 68.6 cm (27"), 100 x 100 mm, Black

The Neomounts desk mount, model FPMA-D700D3 is a tilt- and rotatable desk mount for 3 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp.

Neomounts versatile tilt (90°), rotate (360°) and swivel (103°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 32 to 42 centimetres. Depth 7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D700D3 has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D700D3
Our part no.CB16407
EAN8717371443641
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight10.7 kg
Mounting
Maximum weight capacity8 kg
Minimum screen size25.4 cm (10")
Number of displays supported3
Maximum weight capacity (per display)8 kg
Maximum screen size68.6 cm (27")
MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (max)9 cm
Distance to the wall (min)0 mm
Distance to the wall (max)7 cm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range320 - 420 mm
Depth adjustment range0 - 70 mm
Width adjustment122.5 cm
Tilt angle range-90 - 90°
SwivellingYes
Swivel angle103°
Swivel angle range0 - 103°
RotatingYes
Angle of rotation360°
Design
Housing materialSteel
Product colourBlack
Weight & dimensions
Width1225 mm
Depth70 mm
Height420 mm
Weight9.16 kg
Packaging data
Package width750 mm
Package depth334 mm
Package height160 mm
Package weight9.5 kg
Other features
Width adjustment range0 - 1225 mm
Logistics data
Master (outer) case width750 mm
Master (outer) case length334 mm
Master (outer) case height160 mm
Master (outer) case gross weight10.5 kg
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case net weight9.5 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)39 pc(s)
