Description

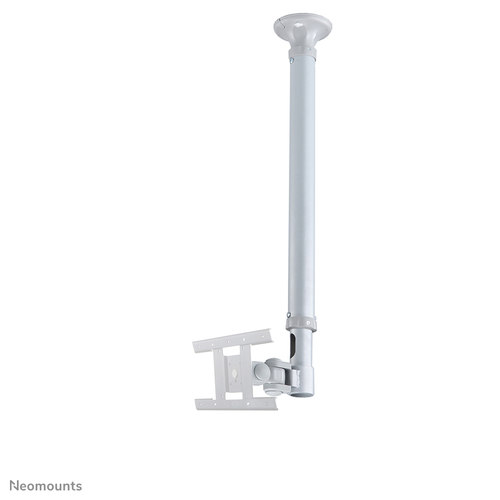

Neomounts FPMA-C100SILVER Monitor/TV mount ceiling 10-30" - h 79-129 cm, 75 x 75 mm, 200 x 100 mm, 0 - 180°, 0 - 180°, 360°, Silver
The Neomounts ceiling mount, model FPMA-C100SILVER is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 79 to 129 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts FPMA-C100SILVER has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | FPMA-C100SILVER |
| Our part no. | CB16413 |
| EAN | 8717371442347 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 0 kg |
| Mounting | |
| Maximum weight capacity | 12 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 12 kg |
| Maximum screen size | 76.2 cm (30") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 100 mm |
| Panel mounting interface | 100 x 200,100 x 100,75 x 75 |
| Mounting type | Ceiling |
| Ergonomics | |
| Height adjustment type | Manual |
| Height adjustment range | 790 - 1290 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Swivel angle range | 0 - 180° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Tilt angle | 180° |
| Design | |
| Product colour | Silver |
| Housing material | Steel |
| Technical details | |
| Country of origin | Taiwan |
| Weight & dimensions | |
| Depth | 90 mm |
| Height | 1290 mm |
| Weight | 4.32 kg |
| Packaging data | |
| Package width | 858 mm |
| Package depth | 152 mm |
| Package height | 188 mm |
| Package weight | 4.5 kg |
| Logistics data | |
| Master (outer) case width | 880 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 16.2 kg |
| Master (outer) case net weight | 14.6 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 42 pc(s) |
| Other features | |
| Adjustable | Yes |
| Depth adjustment range | 0 - 90 mm |
