Neomounts FPMA-DTB100 Toolbar desk rail 10-24", Clamp, 10 kg, 25.4 cm (10"), 61 cm (24"), 100 x 100 mm, Silver

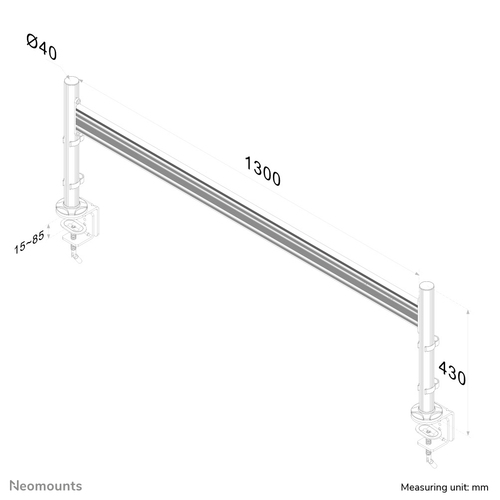

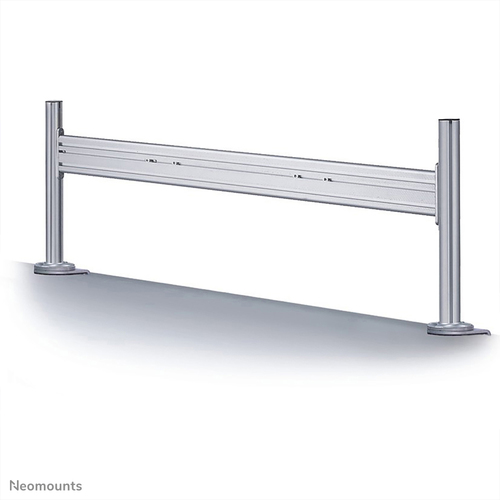

With the Neomounts FPMA-DTB100 toolbar desk rail, you can install up to 3 screens from 10-24" and maximum 10 kg per screen to the tabletop using a desk clamp. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar desk rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket.

There are various monitor brackets available that can be combined with the FPMA-DTB100 toolbar desk mount: * The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg. * The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.

Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-DTB100 toolbar desk mount features cable clips so cables can be easily and neatly routed.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-DTB100
Our part no.CB16424
EAN8717371442262
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight7.6 kg
Mounting
Maximum weight capacity10 kg
Minimum screen size25.4 cm (10")
Number of displays supported3
Maximum weight capacity (per display)10 kg
Maximum screen size61 cm (24")
MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range0 - 420 mm
Depth adjustment range0 - 80 mm
Design
Housing materialAluminium
Product colourSilver
Weight & dimensions
Depth80 mm
Height420 mm
Weight6.87 kg
Packaging data
Package width1360 mm
Package depth170 mm
Package height170 mm
Package weight6.9 kg
Other features
Mounting interfaceVESA 75x75 mm
Logistics data
Master (outer) case width1360 mm
Master (outer) case length170 mm
Master (outer) case height170 mm
Master (outer) case gross weight7.7 kg
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case net weight6.9 kg
Harmonized System (HS) code7616991099
Products per pallet (EU)30 pc(s)
