Neomounts FPMA-D700D4 Monitor arm 19-30", Clamp, 8 kg, 48.3 cm (19"), 76.2 cm (30"), 100 x 100 mm, Black

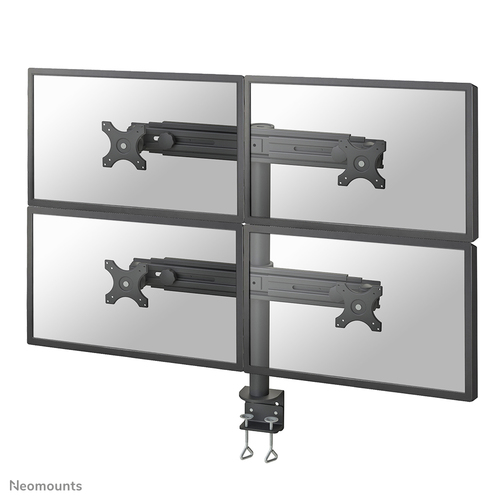

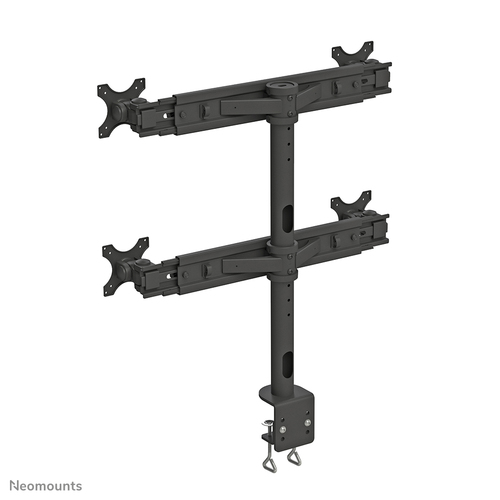

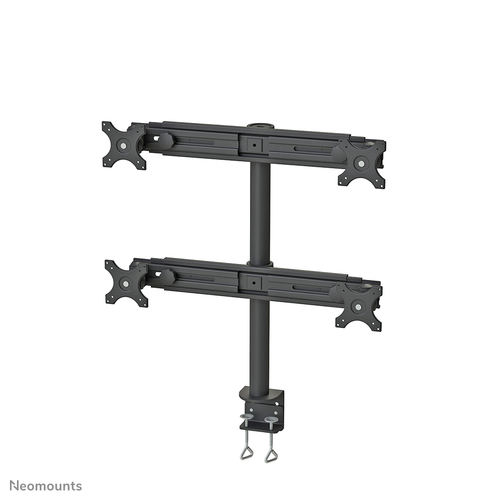

The Neomounts desk mount, model FPMA-D700D4 is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.

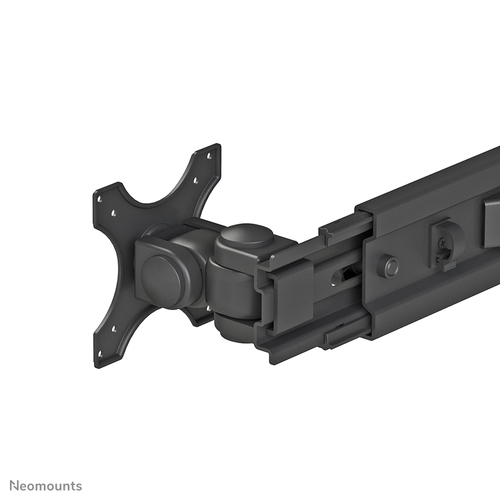

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 70 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D700D4 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D700D4
Our part no.CB16454
EAN8717371442491
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight12.5 kg
Mounting
Maximum weight capacity8 kg
Minimum screen size48.3 cm (19")
Number of displays supported4
Maximum weight capacity (per display)8 kg
Maximum screen size76.2 cm (30")
MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (max)9 cm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range220 - 700 mm
Depth adjustment range0 - 150 mm
Tilt adjustmentYes
Tilt angle range0 - 180°
SwivellingYes
Swivel angle180°
Swivel angle range0 - 180°
RotatingYes
Angle of rotation360°
Design
Housing materialSteel
Product colourBlack
Weight & dimensions
Width830 mm
Depth150 mm
Height700 mm
Weight13.9 kg
Packaging data
Package width830 mm
Package depth555 mm
Package height180 mm
Package weight12.6 kg
Other features
Width adjustment range520 - 830 mm
Logistics data
Master (outer) case width830 mm
Master (outer) case length555 mm
Master (outer) case height180 mm
Master (outer) case gross weight14.2 kg
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case net weight12.6 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)14 pc(s)
