Description
Neomounts FPMA-D860DBLACK Monitor arm 10-27", Clamp/Grommet, 7 kg, 25.4 cm (10"), 68.6 cm (27"), 100 x 100 mm, Black

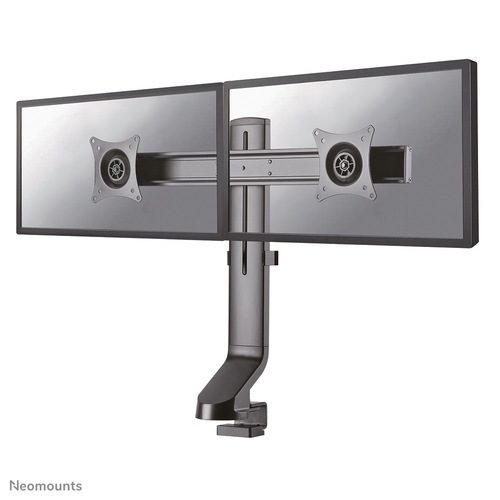

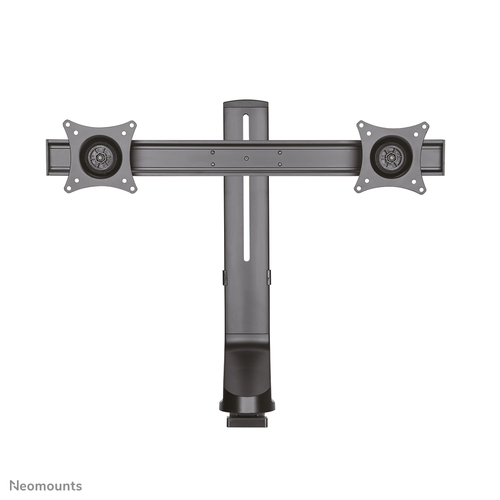

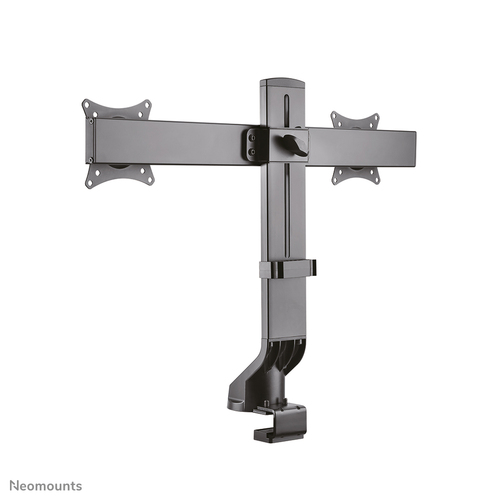

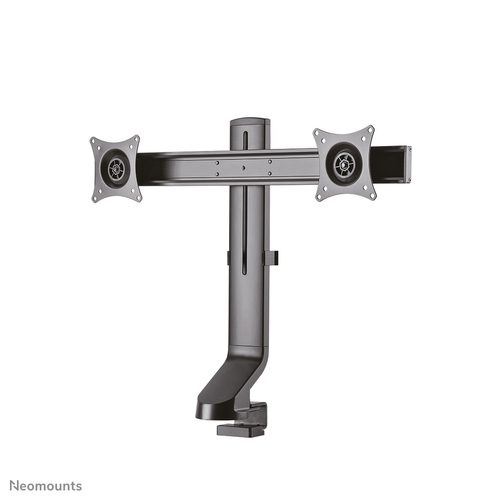

The Neomounts desk mount, model FPMA-D860DBLACK is a tilt-, swivel and rotatable desk mount for two flat screens up to 27". This mount is a great choice for space saving placement on desks.
Neomounts versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 24 to 47 centimetres. Depth 5 centimetres.
Neomounts FPMA-D860DBLACK has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 7 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | FPMA-D860DBLACK |
| Our part no. | CB16522 |
| EAN | 8717371446727 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 2.3 kg |
| Mounting | |
| Maximum weight capacity | 7 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Desk thickness (max) | 2.5 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 240 - 470 mm |
| Depth adjustment range | 0 - 50 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 10° |
| Swivelling | Yes |
| Swivel angle | 20° |
| Swivel angle range | -10 - 10° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Pivot angle | -180 - 180° |
| Number of pivot points | 1 |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
| Depth | 50 mm |
| Height | 470 mm |
| Weight | 3.21 kg |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 90 mm |
| Package height | 745 mm |
| Package weight | 3.8 kg |
| Logistics data | |
| Master (outer) case width | 540 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 12.5 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 10 kg |
| Harmonized System (HS) code | 7616991099 |
| Products per pallet (EU) | 88 pc(s) |
