Description

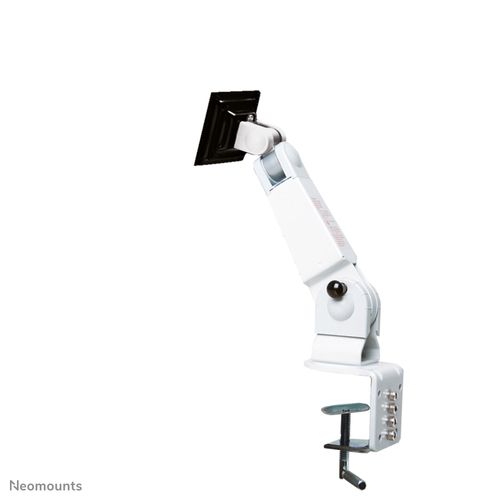

Neomounts FPMA-D400 Monitor arm 10-30", Clamp, 10 kg, 25.4 cm (10"), 76.2 cm (30"), 100 x 100 mm, Grey

The Neomounts desk mount, model FPMA-D400 is a tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.

Neomounts versatile tilt (180°), rotate (270°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 7 to 30 centimetres. Depth adjustable from 11 to 34 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D400 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D400
Our part no.CB16551
EAN8717371440145
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight3.7 kg
Mounting
Maximum weight capacity10 kg
Minimum screen size25.4 cm (10")
Number of displays supported1
Maximum weight capacity (per display)10 kg
Maximum screen size76.2 cm (30")
MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Distance to the wall (min)10 cm
Distance to the wall (max)34 cm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range70 - 300 mm
Depth adjustment range110 - 340 mm
Tilt adjustmentYes
Tilt angle range0 - 180°
SwivellingYes
Swivel angle180°
Swivel angle range0 - 180°
RotatingYes
Angle of rotation270°
Design
Housing materialAluminium
Product colourGrey

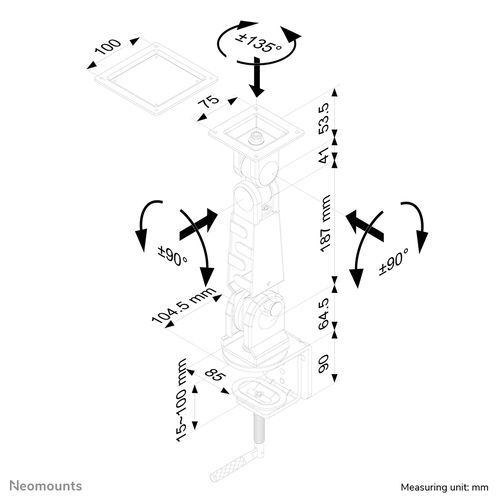

Weight & dimensions
Depth340 mm
Height300 mm
Weight3.81 kg
Packaging data
Package width460 mm
Package depth150 mm
Package height150 mm
Package weight3.4 kg
Other features
Mounting interfaceVESA 75 x 75mm, 100 x 100mm
Logistics data
Master (outer) case width480 mm
Master (outer) case length320 mm
Master (outer) case height460 mm
Master (outer) case gross weight23.8 kg
Products per master (outer) case6 pc(s)
Country of originTaiwan
Master (outer) case net weight22.9 kg
Harmonized System (HS) code7616991099
Products per pallet (EU)96 pc(s)
