Description

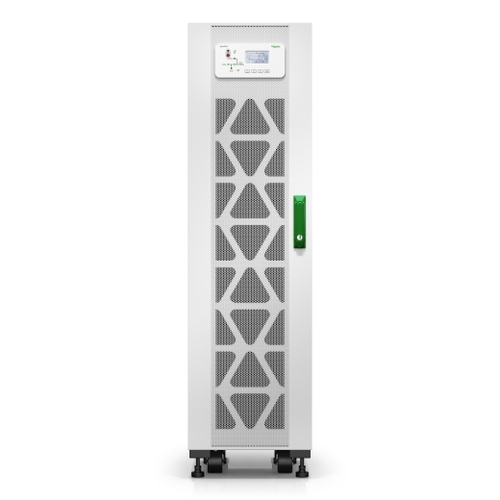

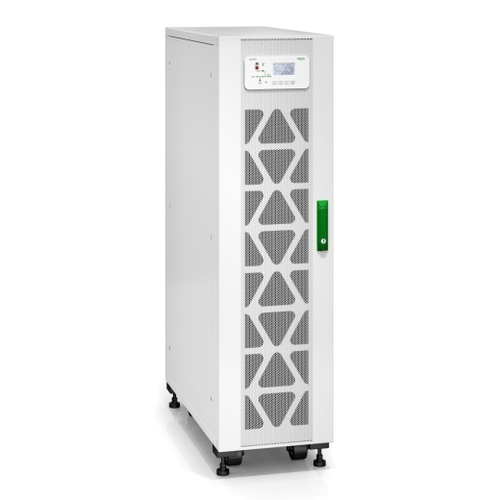

APC Easy UPS 3S 20 kVA 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 3, Double-conversion (Online), 20 kVA, 20000 W, 304 V, 477 V, 45/65 Hz
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA 3:1 UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7 Ah modular battery strings, expandable to 3 strings for extended runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3SUPS20K3IB1 |
| Our part no. | CB35470 |
| EAN | 0731304428213 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 37 A |
| Number of input phases | 3 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 2 |
| Typical backup time at full load | 15 min |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 177 kg |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 186 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
