Description

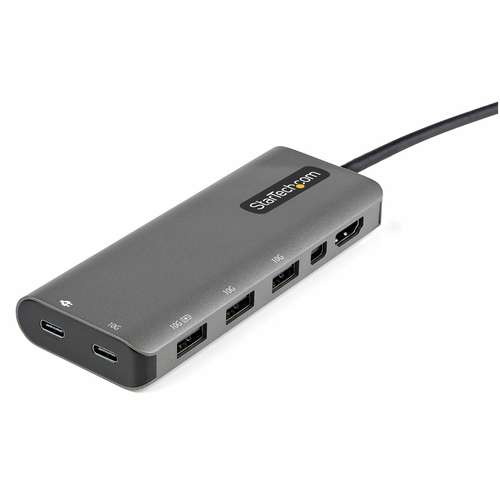

StarTech.com USB C Multiport Adapter - USB-C to HDMI or Mini DisplayPort 4K 60Hz, 100W Power Delivery Pass-Through, 4-Port 10Gbps USB Hub - USB Type-C Mini Dock - w/ 12" Attached Cable, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 2.0b, Black, Silver, 10 Gbit/s
USB-C Multiport Adapter | HDMI & Mini DisplayPort Video | 100W PD Pass-Through | 4-Port USB Hub

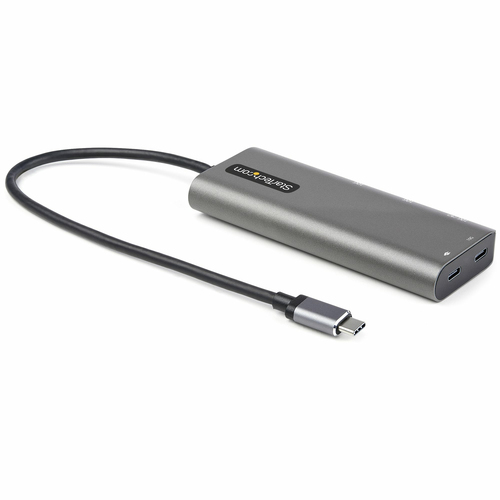

This USB-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.
Maximum Resolution
The portable docking station connects your laptop to a 4K 60Hz HDMI or mini DisplayPort monitor (4096 x 2160p) to create a powerful workstation. Can be used with an mDp to DP video adapter to connect your DP monitor and can also connect to an ultrawide monitor.
DP Alt Mode Required
Maximum Resolution
DP 1.2 Alternate Mode
Up to 4K 30Hz
DP 1.4 Alternate Mode
Up to 4K 60Hz
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you one USB-C port and three USB-A ports to connect your legacy USB devices.
Charge Your Laptop and Peripheral
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
The DKT31CMDPHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | DKT31CMDPHPD |
| Our part no. | CB88860 |
| EAN | 0065030892025 |
| Category | Docks, Bags & Racks › Docking Stations |
| Weight | 0.1 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Mini DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| DC-in jack | No |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black, Silver |
| Certification | CE, FCC, RoHS |
| Power | |
| Power consumption (typical) | 15 W |
| Wireless charging | No |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Mobile operating systems supported | Android, iPadOS |
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Width | 425 mm |
| Depth | 46.8 mm |
| Height | 160 mm |
| Weight | 84.3 g |
| Packaging data | |
| Package width | 164 mm |
| Package depth | 121 mm |
| Package height | 34 mm |
| Package weight | 153 g |
| Packaging content | |
| Quick start guide | Yes |
| Logistics data | |
| Products per master (outer) case | 80 pc(s) |
| Master (outer) case width | 478 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 456 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.3 m |
| Chipset | Realtek - RTD2142S, VIA Labs - VL103, VIA Labs - VL822, VIA Labs - VL160, Terminus - FE8.1 |
