Description
Viewsonic EP5542, 139.7 cm (55"), 3840 x 2160 pixels, 16/7
ULTRA HD RESOLUTION With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
POWERFUL EMBEDDED SOC PLATFORM The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.

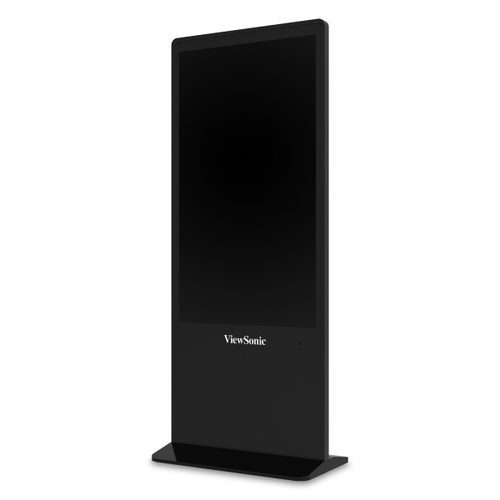

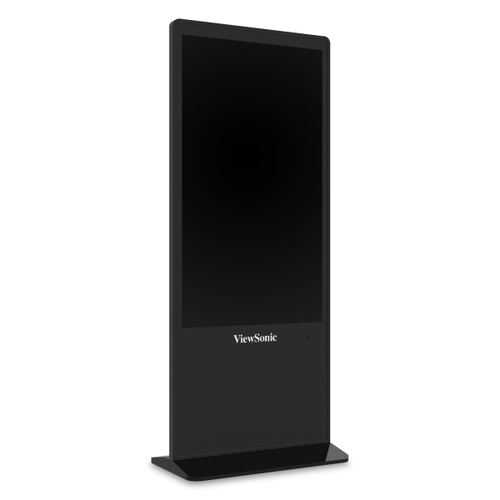

FREE-STANDING DESIGN This all-in-one digital ePoster kiosk features a sleek and slim premium design, coupled with a free-standing form factor to deliver dynamic messaging in high-traffic areas.
OPTIONAL CONTENT MANAGEMENT SOFTWARE Great for all venues and scenarios, the optional cloud-based Revel Digital CMS software lets users transfer multimedia content onto the display from PCs and laptops. This partner-certified content management tool also lets you format, schedule, and save playback settings.
ANTI-SCRATCH, ANTI-GLARE GLASS FACEPLATE This display features a scratch-resistant surface that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.

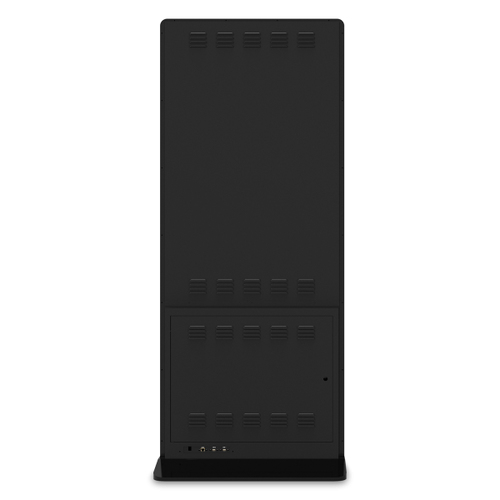

MEDIA PLAYER CRADLE WITH LOCKABLE SECURITY DOOR A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.
VERSATILE CONNECTIVITY DisplayPort, HDMI, and VGA inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.
DUAL INTEGRATED SPEAKERS Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
EASY LAN CONTROL This display has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.
Specifications
| Brand | VIEWSONIC |
|---|---|
| Manufacturer part no. | EP5542 |
| Our part no. | CB98215 |
| EAN | 0766907006896 |
| Category | Monitors & Displays › Large Format Displays |
| Weight | 85 kg |
| Display | |
| Panel type | MVA |
| LED backlighting type | Direct-LED |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 9 ms |
| Contrast ratio (typical) | 1300:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Rated lifetime | 30000 h |
| Haze rate | 2% |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Design | |
| Orientation | Vertical |
| Anti-glare screen | Yes |
| Performance | |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 126 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 73 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Internal memory | 2 GB |
| Operating system installed | Android 8.0 |
| Weight & dimensions | |
| Display width | 768.5 mm |
| Display depth | 400 mm |
| Display height | 1870 mm |
| Display weight | 62.7 kg |
| Weight | 58 kg |
| Packaging data | |
| Package width | 920 mm |
| Package depth | 550 mm |
| Package height | 2000 mm |
| Package weight | 66.7 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Pallet gross length | 92 cm |
| Pallet gross width | 55 cm |
| Pallet gross height | 2.13 m |
| Harmonized System (HS) code | 8528529100 |
| Network | |
| Ethernet LAN | Yes |
