SilverNet SIL 73208P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Description

SilverNet SIL 73208P, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

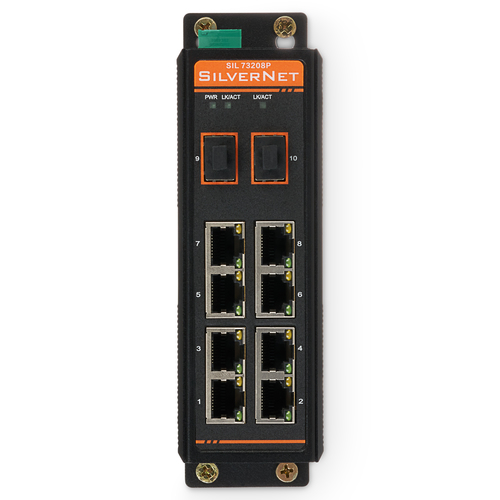

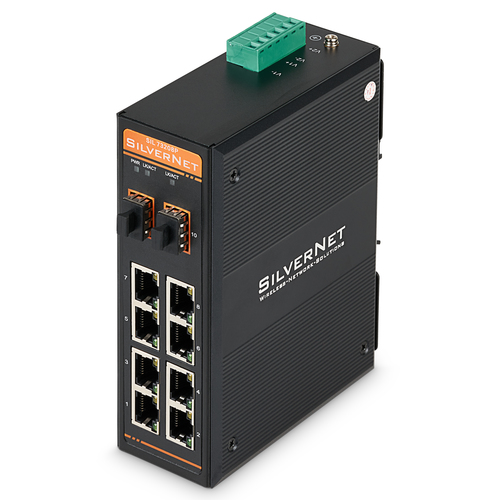

The SIL 73208P is an industrial-grade Gigabit PoE+ Ethernet Switch that includes eight 10/100/1000Mbps RJ45 ports with PoE+ (30w) support, and two 100/1000Mbps SFP (Fibre) uplink ports. This high-performance, high-specification, and cost-effective unit is well-suited for network operations in challenging industrial environments.

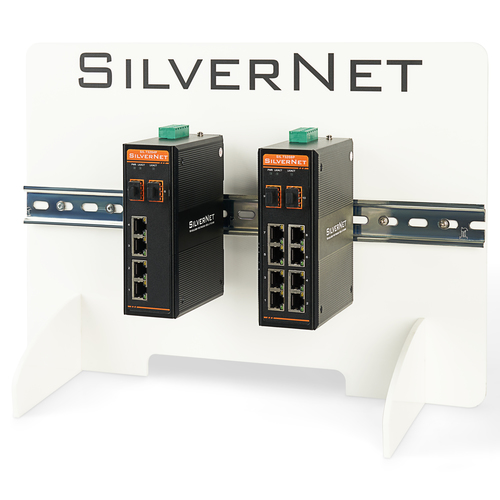

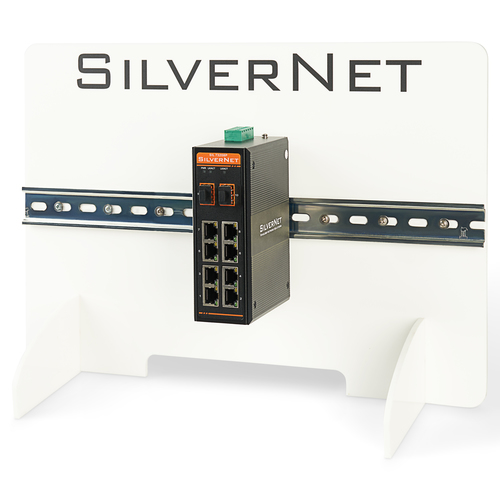

This switch is plug-and-play, requiring no configuration, and becomes operational as soon as it is powered on. It provides flexible installation options, such as DIN rail and wall mounting with the provided bracket, adding to its versatility.

Built for tough conditions, the switch features a robust industrial design and an extended temperature range, making it ideal for demanding settings.

Adhering to the IEEE802.3af/at standard, the SIL 73208P facilitates Power-Over-Ethernet (with a required minimum input of 48-56VDC) via CAT 5 / CAT 6 cables. The fibre optic ports are equipped with a modular SFP slot that is compatible with any MSA-compliant 1.25Gbps SFP Transceiver.

Specifications

BrandSILVERNET
Manufacturer part no.SIL 73208P
Our part no.CC59372
CategoryNetworking › Unmanaged Switches
Weight0.8 kg
Management features
Switch typeUnmanaged
Switch layerL2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Installed SFP modules quantity2
Fiber ports quantity2
Fiber optic connectorSFP
Network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber
Full duplexYes
Optical fiber
Fiber ethernet cabling technology1000BASE-FX
Fiber typeMulti-mode
Data transmission
Switching capacity20 Gbit/s
MAC address table4000 entries
Store-and-forwardYes
Latency (10-100 Mbps)10 µs
Latency (1 Gbps)10 µs
Jumbo frames supportYes
Jumbo frames10000
Design
Rack mountingNo
StackableYes
Product colourBlack
Housing materialAluminium
LED indicatorsData, LAN, Power
International Protection (IP) codeIP40
Wall mountableYes
DIN rail mountingYes
Power
Power supply includedNo
Number of power supply units1
DC input voltage12 - 56 V
Power consumption (typical)15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPassive PoE
Power over Ethernet (PoE) ports quantity8
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE) voltage48 V
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget240 W
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 90%
Weight & dimensions
Width49 mm
Depth108 mm
Height138 mm
Weight685 g
Packaging content
Quick start guideYes
User guideYes
ManualYes
Packaging data
Package typeBox
Package width166 mm
Package depth220 mm
Package height80 mm
Package weight890 g
Certificates
CertificationCE FCC Part 15 Class A IEC 61000-4-2 (ESD): Level 4 (8K/15K) IEC 61000-4-3 (RS): Level 3 (10V/m) IEC 61000-4-4 (EFT): Level 3 (1V/2V) IEC 61000-4-5 (surge): Level 3 (4KV/2KV) IEC 61000-4-6 (RF coupling): (10V/m) IEC61000-4-8 (Power Frequency Magnetic Field):Level 4 (30A/m) IEC 60068-2-27 IEC 60068-2-32 0.5m IEC 60068-2-6 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020
Logistics data
UK Trade Tariff code85176200
