Description

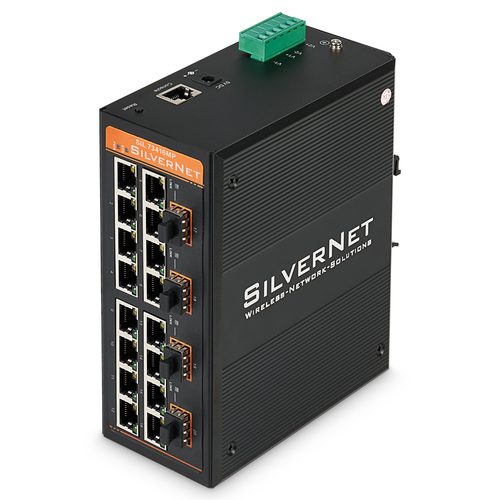

SilverNet SIL 73416MP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

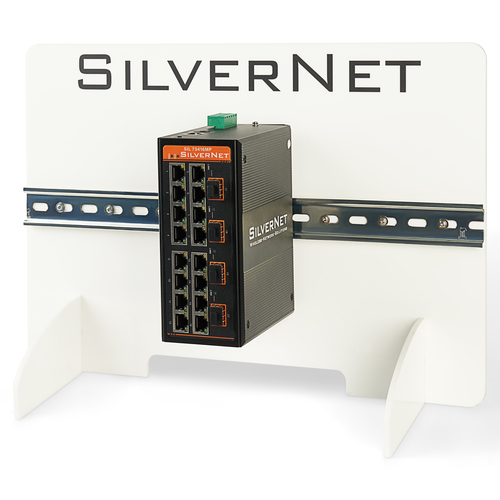

The SIL 73416MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, crafted for use in harsh environments, thanks to its robust industrial design.

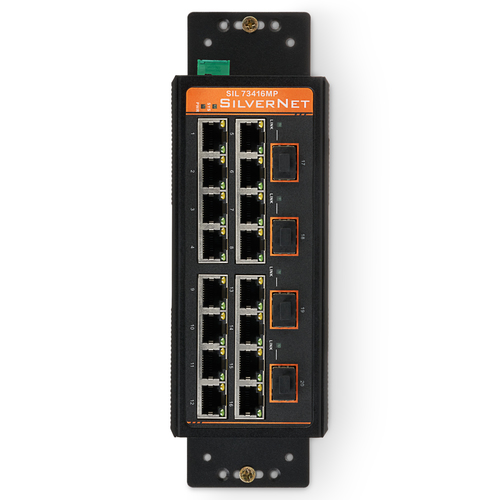

It is equipped with 16 x 10/100/1000Base-T ports and 4 x 1000Base-FX SFP slots.
The switch features numerous intelligent attributes, including a dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability.
The 73416MP offers a flexible solution for extending Ethernet over long distances through fiber daisy chaining, thus removing the need for individual power supplies for IP video cameras and wireless access points. It also functions within a broad temperature range, making it ideal for outdoor cabinets and challenging industrial environments.
Compliant with the IEEE802.3af/at standard, it facilitates Power-over-Ethernet delivery via twisted pair cables.
Moreover, the switch contains four fiber optic ports with a modular SFP slot that supports any MSA-compliant pluggable 1.25Gbps SFP transceiver.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL 73416MP |
| Our part no. | CC59373 |
| Category | Networking › Switches |
| Weight | 1.4 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| User operation log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 4 |
| SFP module slots quantity | 4 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Cable types supported | Cat5e, Cat6 |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Number of VLANs | 4095 |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-FX |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 29.76 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Password protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | No |
| Stackable | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| Temperature sensor | Yes |
| Reset button | Yes |
| LED indicators | Data, LAN, PoE, Power |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Minimum system requirements | Web Browser |
| Power | |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| DC input voltage | 9 - 56 V |
| Power consumption (typical) | 7 W |
| Power consumption (max) | 30 W |
| Power protection features | Overload, Reverse polarity |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 480 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 140 mm |
| Height | 160 mm |
| Weight | 1.14 kg |
| Packaging content | |
| Cables included | RS-232 |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 205 mm |
| Package depth | 215 mm |
| Package height | 95 mm |
| Package weight | 1.4 kg |
| Certificates | |
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
