Description
SilverNet SIL NDR-480-48, Power supply, Black, Power, Over voltage, Overheating, Overload, 230200 h, EN6100-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, EN55032 (CISPR32),...

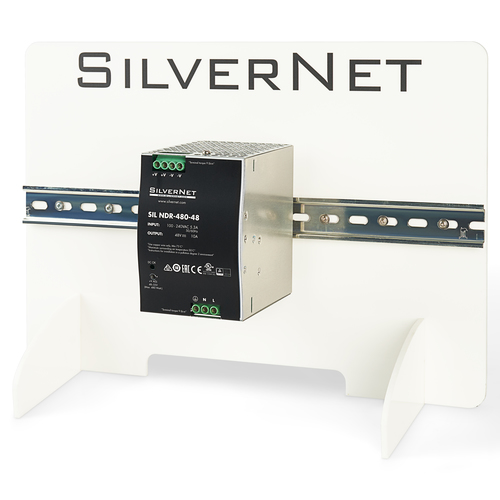

The SIL NDR-480-48 PSU, a 480W, 48V, 10A DIN rail power supply, is designed for mounting on TS-35/7.5 or TS-35/15 rails. Its compact 86mm width is space-efficient when mounted inside cabinets.
Perfectly suited for SilverNet Series 7 Industrial network switches, the SIL NDR-480-48 is encased in a metal housing that enhances power dissipation and offers an impressive operational efficiency of up to 90%. It operates reliably in temperatures from -20°C to 70°C and includes protection against short circuits, overload, and overvoltage.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL NDR-480-48 |
| Our part no. | CC59375 |
| Category | Computers & Servers › Power Supplies |
| Weight | 1.5 kg |
| Features | |
| Product type | Power supply |
| Product colour | Black |
| DIN rail mounting | Yes |
| LED indicators | Power |
| Power protection features | Over voltage, Overheating, Overload |
| Mean time between failures (MTBF) | 230200 h |
| Network | |
| Compliance industry standards | EN6100-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2, -3, EAC TP TC 020 |
| Power | |
| Total power | 480 W |
| AC input voltage | 90-264 V |
| AC input frequency | 47 - 63 Hz |
| Maximum current | 10 A |
| Inrush current | 35 A |
| DC voltage range | 48 - 55 V |
| DC output voltage | 48 V |
| Voltage tolerance | 1% |
| Certificates | |
| Certification | Heavy industry level, criteria A, EAC TP TC 020 Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC UL508, TUV EN62368-q, EAC TP TC 004 approved;(meet EN60204-1) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 85.5 mm |
| Depth | 128.5 mm |
| Height | 125.2 mm |
| Weight | 1.46 kg |
| Packaging data | |
| Package width | 120 mm |
| Package depth | 170 mm |
| Package height | 149 mm |
| Package weight | 1.5 kg |
| Logistics data | |
| UK Trade Tariff code | 85044095 |
| Warranty period | 1 year(s) |
