Description

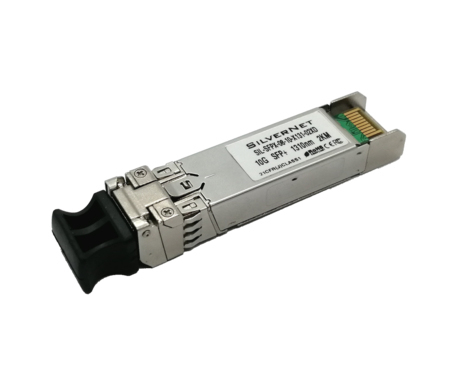

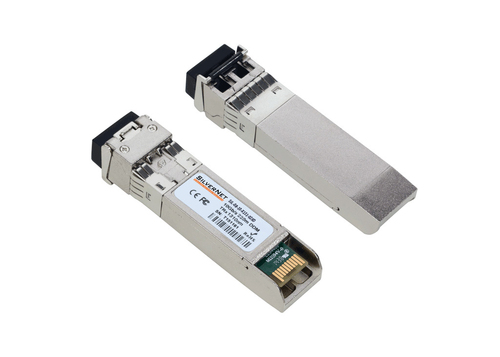

SilverNet SIL-08-10-X131-02XD, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 220 m
The SIL-SFPX-08-10-X131-02XD is a 10G Singlemode 1310nm SFP+ module capable of reaching up to 2km. It's perfectly suited for 10G high-capacity networks, simplifying the extension of Ethernet over distances by utilizing the Fibre ports on switches for daisy-chaining.
These modules adhere to the SFP MSA specifications and function within a temperature range of 0~+70°C.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL-08-10-X131-02XD |
| Our part no. | CC59383 |
| Category | Networking › Transceivers & SFPs |
| Weight | 0 kg |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 220 m |
| Wavelength | 1310 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Nickel |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE IEC60825-1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 10 mm |
| Depth | 15 mm |
| Height | 60 mm |
| Weight | 15 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 50 mm |
| Package depth | 100 mm |
| Package height | 20 mm |
| Package weight | 30 g |

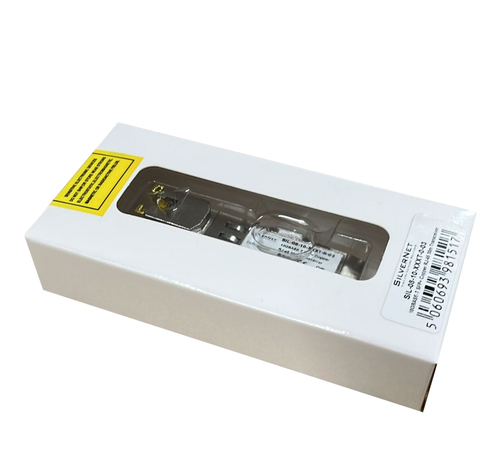

| Package type | Box |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Warranty period | 1 year(s) |
| Country of origin | United Kingdom |
