Description
SilverNet SIL-01-25-B149-10XD, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, 10000 m

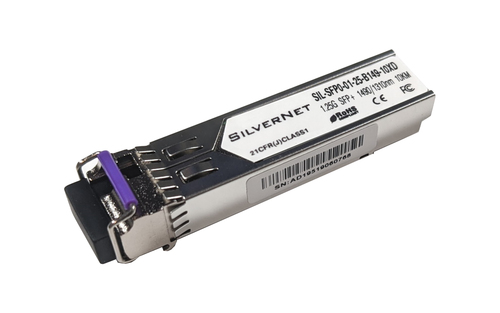

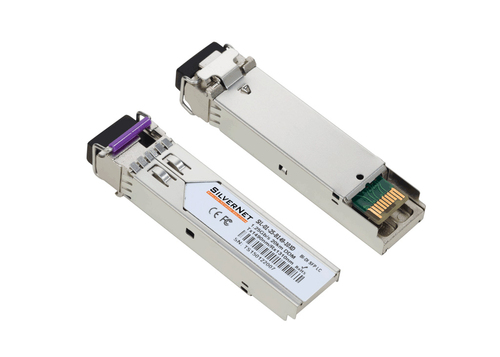

The SIL-01-25-B149-10XD is a 1Gbps Singlemode BiDi (Bi Directional) SFP module.
SilverNet BiDi SFP modules transmit and receive signals with different wavelengths, they should be purchased as pairs so you can connect the two BiDi SFPs which have the opposite wavelength together. So if you use a TX1490/RX1310nm BiDi SFP at one end, then we must use a TX1310/RX1490nm (SIL-01-25-B139-10XD) BiDi SFP on the other end.
The SIL-01-25-B149-10XD modules are capable of data rates up to 1Gbps over a distance of up to 10km. They are compliant with the SFP MSA specification and operate from 0~+70°C
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL-01-25-B149-10XD |
| Our part no. | CC59386 |
| Category | Networking › Transceivers & SFPs |
| Weight | 0 kg |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Nickel |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Compliance certificates | RoHS |
| Safety | IEC60825-1 |
| Certification | MSA, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 10 mm |
| Depth | 15 mm |
| Height | 60 mm |
| Weight | 15 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 50 mm |
| Package depth | 100 mm |
| Package height | 20 mm |
| Package weight | 30 g |

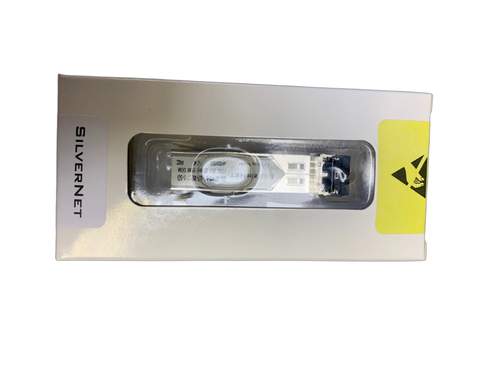

| Package type | Box |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Warranty period | 1 year(s) |
| Country of origin | United Kingdom |
