Description

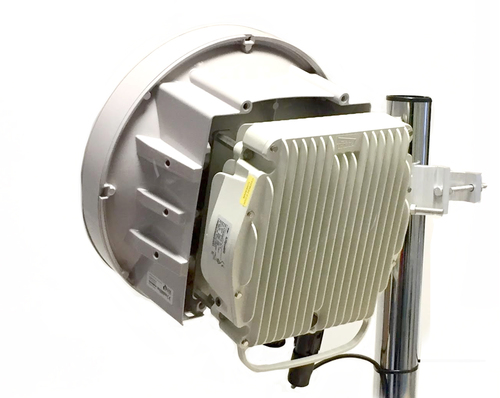

SilverNet FDD 801G-30-PCP, Network bridge, 1000 Mbit/s, Ethernet LAN, White
The SIL FDD 801G-30-PCP is a full outdoor, full IP next generation millimetre wave radio link that operates in the 71-86GHz E-Band with throughput of up to 1 Gbps at distances up to 2km.

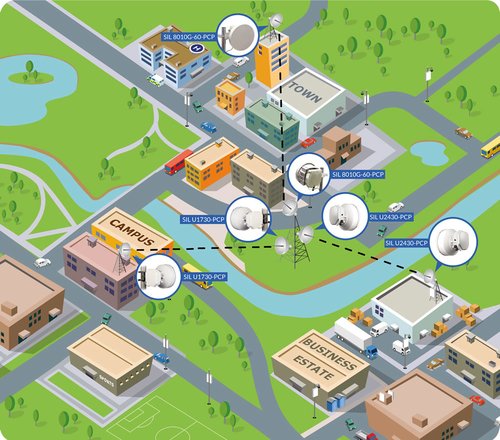

With its high throughput and its zero-footprint characteristic, the SilverNet SIL FDD 801G-30-PCP is the ideal solution for ultra high capacity wireless links in urban environments for all carrier-class applications (mobile backhaul, enterprise, ISP). Latest synchronization techniques and advanced Ethernet/IP functionalities make the SilverNet 80GHz Backhaul a-state-of-art IP radio.
The Backhaul Range is a class leading wireless outdoor bridge that has been optimised for long transmission distances. Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution
Note
The 73.375 – 75.875 GHz and 83.375 – 85.875 GHz band is available in the UK under a light licensed process for point to point fixed wireless applications.
The fee for the licence is currently £50, which includes the charge for registration of the first link for the first year of the licence. Any further links registered by the licensee will be charged at £50 per link per year.
For more information please visit the Ofcom website https://www.ofcom.org.uk/spectrum/radio-equipment/fixed-terrestrial-links/
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL FDD 801G-30-PCP |
| Our part no. | CC59415 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Data transmission | |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 2000 m |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 2 |
| Wireless LAN features | |
| WLAN data transfer rate (max) | 1000 Mbit/s |
| Frequency band | 80GHz (71 - 76GHz, 81 - 86GHz) |
| Modulation | 8-QAM, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK |
| Receiver sensitivity | See Datasheet |
| Output power (dBm) | See Datasheet |
| Frequency stability | 5 ppm |
| Outdoor range | 2000 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 1588v2, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
| Security | |
| Security algorithms | 128-bit AES, 256-bit AES |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
| Management protocols | SNMP v1/v2c/v3, HTTPs, SSH, SFTP, RADIUS, |
| Web-based management | Yes |
| Features | |
| Product type | Network bridge |
| Mounting type | Wall/Pole |
| Product colour | White |
| Power LED | Yes |
| Real-Time Parameter Control (RTPC) | Yes |
| Automatic Transmit Power Control (ATPC) | Yes |
| International Protection (IP) code | IP65 |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| Flow control support | Yes |
| RMON Statistics | Yes |
| Link Loss Forwarding (LLF) | Yes |
| Link aggregation | Yes |
| Power | |
| Power source type | PoE |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 32 W |
| Power consumption (max) | 53 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 55 V |
| Power plug type | Type G |
| Operational conditions | |
| Operating temperature (T-T) | -35 - 55 °C |
| Certificates | |
| Certification | ETSI EN 302 217 / FCC CFR 47, Part 101 and Part 15 |
| Weight & dimensions | |
| Antenna diameter | 30 cm |
| Width | 290 mm |
| Depth | 302.5 mm |
| Height | 117.6 mm |
| Weight | 12.5 kg |
| Packaging content | |
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Cables included | LAN (RJ-45) |
| Antenna included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Other features | |
| Warranty period | 2 year(s) |
| Packaging data | |
| Package width | 400 mm |
| Package depth | 400 mm |
| Package height | 500 mm |
| Package weight | 1.55 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
