Description
SilverNet FDD 802G-60-PCP, Network bridge, 2000 Mbit/s, White

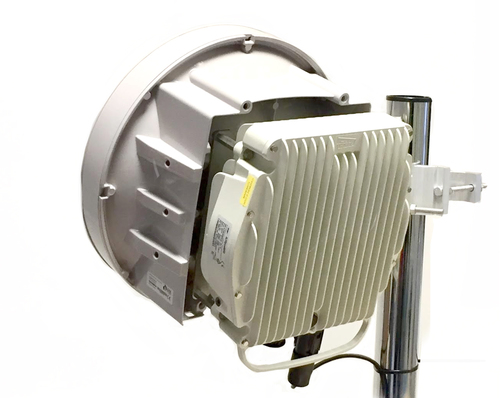

The SIL FDD 802G-60-PCP is an all-outdoor, full IP, next-generation millimeter wave radio link operating in the 71-86GHz E-Band. It boasts a throughput of up to 2 Gbps over distances of up to 5km using the equipped 60cm antenna.
This link is equipped with two Gigabit Ethernet ports and can be ordered to include two Gigabit Fibre ports or a single 2.5Gbps Fibre port.

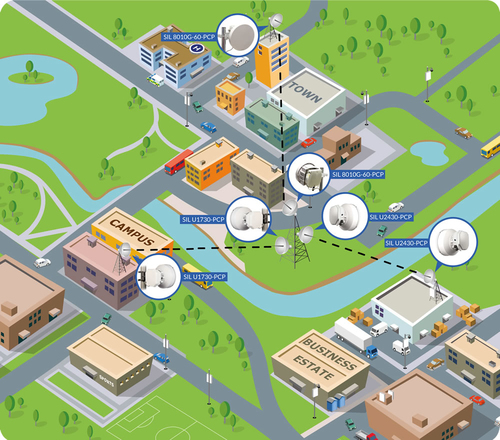

With its high throughput and zero-footprint design, the SilverNet SIL FDD 802G-60-PCP stands out as the perfect choice for ultra-high capacity wireless links in urban settings, catering to all carrier-class applications such as mobile backhaul, enterprise, and ISPs. It incorporates the latest synchronization techniques and advanced Ethernet/IP features, establishing the SilverNet 80GHz Backhaul as a state-of-the-art IP radio.
The Backhaul Range is a top-tier wireless outdoor bridge, designed for extended transmission distances. When combined with the complimentary SilverView network monitoring software, it presents a comprehensive and feature-rich solution.
Note
The 73.375 – 75.875 GHz and 83.375 – 85.875 GHz band is available in the UK under a light licensed process for point to point fixed wireless applications.
The fee for the licence is currently £50, which includes the charge for registration of the first link for the first year of the licence. Any further links registered by the licensee will be charged at £50 per link per year.
For more information please visit the Ofcom website https://www.ofcom.org.uk/spectrum/radio-equipment/fixed-terrestrial-links/
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL FDD 802G-60-PCP |
| Our part no. | CC59418 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Data transmission | |
| Maximum data transfer rate | 2000 Mbit/s |
| Maximum transfer distance | 5000 m |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 2 |
| Wireless LAN features | |
| Frequency band | 80 GHz |
| Modulation | 8-QAM, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK |
| Frequency stability | 5 ppm |
| Network | |
| Full duplex | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Security | |
| Security algorithms | 128-bit AES, 256-bit AES |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
| Management protocols | SNMP v1/v2c/v3, HTTPs, SSH, SFTP, RADIUS, |
| Web-based management | Yes |
| Features | |
| Product type | Network bridge |
| Mounting type | Wall/Pole |
| Product colour | White |
| Power LED | Yes |
| Real-Time Parameter Control (RTPC) | Yes |
| Automatic Transmit Power Control (ATPC) | Yes |
| International Protection (IP) code | IP65 |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| Flow control support | Yes |
| RMON Statistics | Yes |
| Link Loss Forwarding (LLF) | Yes |
| Link aggregation | Yes |
| Power | |
| Power source type | PoE |
| Operational conditions | |
| Operating temperature (T-T) | -35 - 55 °C |
| Certificates | |
| Certification | ETSI EN 302 217 / FCC CFR 47, Part 101 and Part 15 |
| Weight & dimensions | |
| Antenna diameter | 60 cm |
| Weight | 15.5 kg |
| Other features | |
| Warranty period | 1 year(s) |
| Packaging data | |
| Package width | 700 mm |
| Package depth | 700 mm |
| Package height | 500 mm |
| Package weight | 18.5 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
