Description

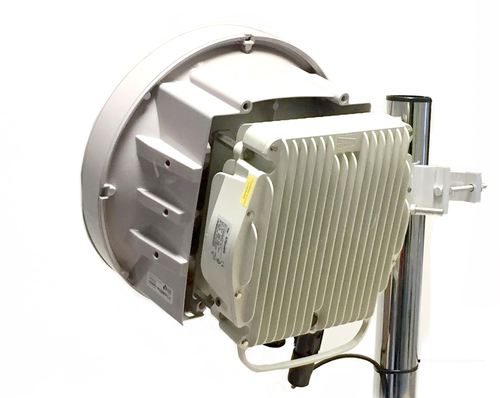

SilverNet SIL FDD 805G-60-PCP, Network bridge, 5000 Mbit/s, Ethernet LAN, White
The SIL FDD 805G-60-PCP is an all-outdoor, full IP, cutting-edge millimeter wave radio link that operates in the 71-76/81-86GHz E-Band. It offers a throughput of up to 5 Gbps for distances reaching 5km.

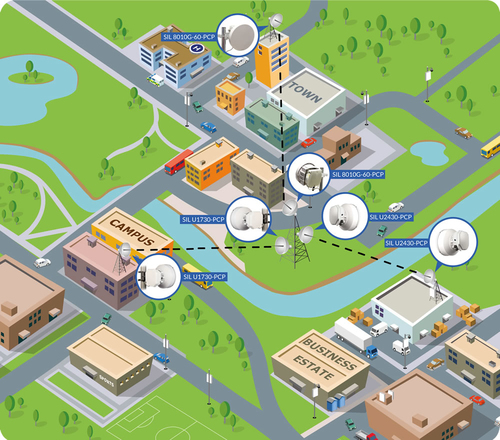

Equipped with dual 2.5Gbps Fibre ports, it emerges as an ideal solution for ultra-high capacity wireless links in urban environments, serving a wide range of carrier-class applications including mobile backhaul, enterprise networks, and ISPs. It integrates the latest synchronization technologies and sophisticated Ethernet/IP functionalities, positioning the SilverNet 80GHz Backhaul as a premier IP radio system.
The Backhaul Range is a superior wireless outdoor bridge, engineered for long-range transmission. Paired with the complementary SilverView network monitoring software, it delivers an extensive and robust solution.
Note
The 73.375 – 75.875 GHz and 83.375 – 85.875 GHz band is available in the UK under a light licensed process for point to point fixed wireless applications.
The fee for the licence is currently £50, which includes the charge for registration of the first link for the first year of the licence. Any further links registered by the licensee will be charged at £50 per link per year.
For more information please visit the Ofcom website https://www.ofcom.org.uk/spectrum/radio-equipment/fixed-terrestrial-links/
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL FDD 805G-60-PCP |
| Our part no. | CC59421 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Data transmission | |
| Maximum data transfer rate | 5000 Mbit/s |
| Maximum transfer distance | 5000 m |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 1 |
| Wireless LAN features | |
| WLAN data transfer rate (max) | 10000 Mbit/s |
| Frequency band | 80GHz (71 - 76GHz, 81 - 86GHz) |
| Modulation | 8-QAM, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK |
| Receiver sensitivity | See Datasheet |
| Output power (dBm) | See Datasheet |
| Frequency stability | 5 ppm |
| Outdoor range | 5000 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 1588v2, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 4 |
| Security | |
| Security algorithms | 128-bit AES, 256-bit AES |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
| Management protocols | SNMP v1/v2c/v3, HTTPs, SSH, SFTP, RADIUS, |
| Web-based management | Yes |
| Features | |
| Product type | Network bridge |
| Mounting type | Wall/Pole |
| Product colour | White |
| Power LED | Yes |
| Real-Time Parameter Control (RTPC) | Yes |
| Automatic Transmit Power Control (ATPC) | Yes |
| International Protection (IP) code | IP67 |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| Flow control support | Yes |
| RMON Statistics | Yes |
| Link Loss Forwarding (LLF) | Yes |
| Link aggregation | Yes |
| System requirements | |
| Minimum system requirements | Internet Explorer, Microsoft Edge, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| Power source type | PoE |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 32 W |
| Power consumption (max) | 53 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 55 V |
| Power plug type | Type G |
| Operational conditions | |
| Operating temperature (T-T) | -35 - 55 °C |
| Certificates | |
| Certification | ETSI EN 302 217 / FCC CFR 47, Part 101 and Part 15 |
| Weight & dimensions | |
| Antenna diameter | 60 cm |
| Weight | 15.5 kg |
| Packaging content | |
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Cables included | LAN (RJ-45) |
| Antenna included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Other features | |
| Warranty period | 2 year(s) |
| Packaging data | |
| Package width | 700 mm |
| Package depth | 700 mm |
| Package height | 500 mm |
| Package weight | 18.5 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
