Description
StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop 4K DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA, 3840 x 2160 pixels, 4K Ultra HD, 36 W, Black
KVM with USB | Quad Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

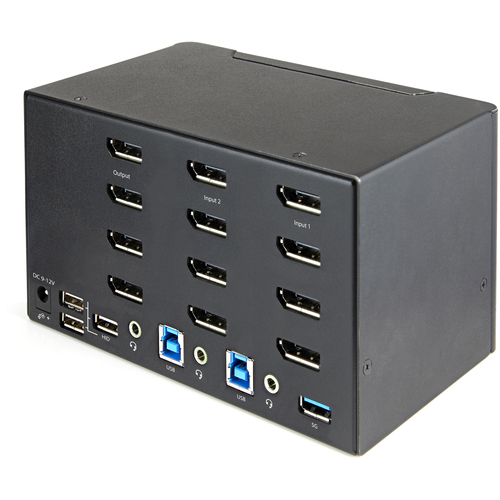

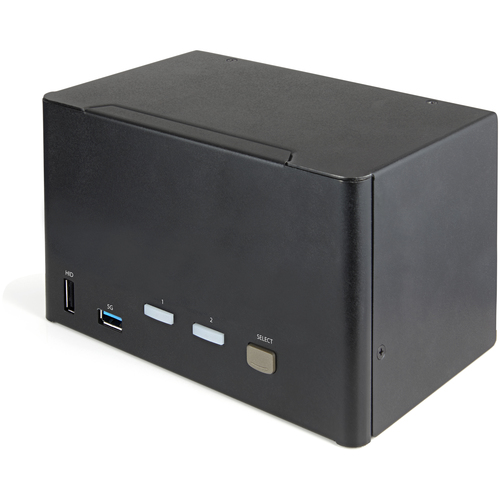

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and drives four large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

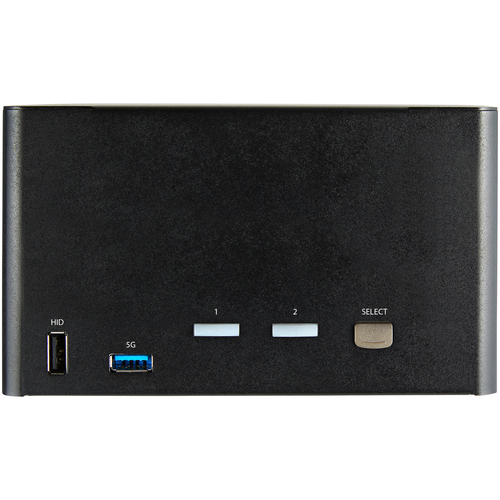

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV231QDPU34K |
| Our part no. | CC61186 |
| EAN | 0065030881777 |
| Category | Networking › Other (0406) |
| Weight | 1.5 kg |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 12 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |

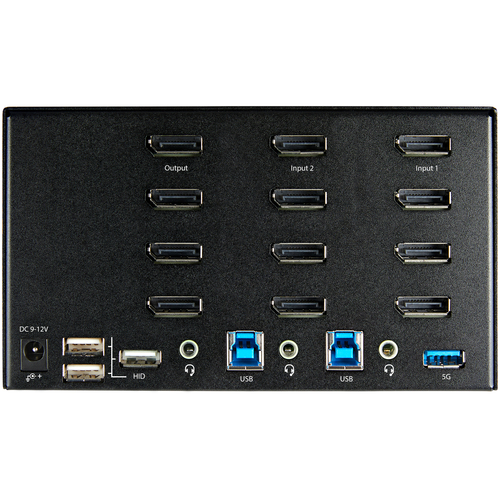

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Daisy chain | No |
| Chipset | Genesys Logic - GL3523 |
| Audio channels | 5.1 |
| Number of displays supported | 4 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Certification | CE, FCC, RoHS |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 438 mm |
| Height | 43 mm |
| Weight | 959 g |
| Packaging data | |
| Package width | 187 mm |
| Package depth | 253 mm |
| Package height | 102 mm |
| Packaging content | |
| Manual | Yes |
| Rubber feet | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 398 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 291 mm |
| Products per master (outer) case | 6 pc(s) |
