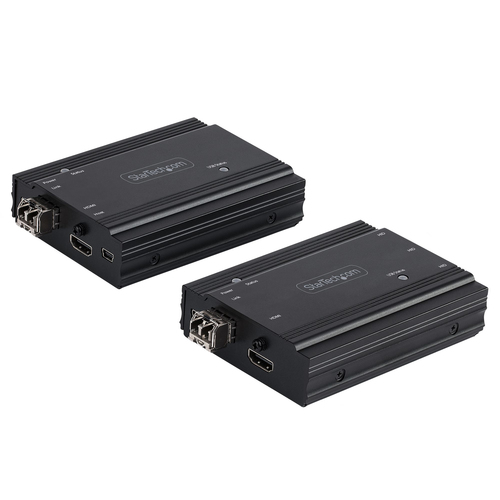

StarTech.com 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ modules - KVM Extension Kit (TX/RX) - TAA, Transmitter & receiver, Wired, 500 m, 3840 x 2160 pixels, 60 Hz, Black
HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) Included
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.
Supports UHD 4K 60Hz
The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.
Hassle-Free Installation
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling
SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV565FXHD4KU |
| Our part no. | CC63181 |
| EAN | 0065030887694 |
| Category | Cables & Adapters › Other (1250) |
| Weight | 1 kg |
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 500 m |
| Rack mounting | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| On Screen Display (OSD) | No |
| Product colour | Black |
| Material | Metal |
| LED indicators | Power, Status |
| Transmitter | |
| Transmitter video port type | HDMI |
| Number of displays supported | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Ports & interfaces | |
| USB 1.1 ports quantity | 3 |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (transmitter) (max) | 10 W |
| Power consumption (receiver) (max) | 10 W |
| Weight & dimensions | |
| Transmitter width | 7.5 cm |
| Transmitter depth | 10 cm |
| Transmitter height | 2.8 cm |
| Transmitter weight | 450 g |
| Receiver width | 7.5 cm |
| Receiver depth | 10 cm |
| Receiver height | 2.8 cm |
| Receiver weight | 450 g |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 310 mm |
| Package height | 74 mm |
| Package weight | 140 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | Mini-USB |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Other features | |
| Compliance certificates | CE, RoHS |
| Technical details | |
| Weight | 500 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 265 mm |
| Products per master (outer) case | 6 pc(s) |
