Description

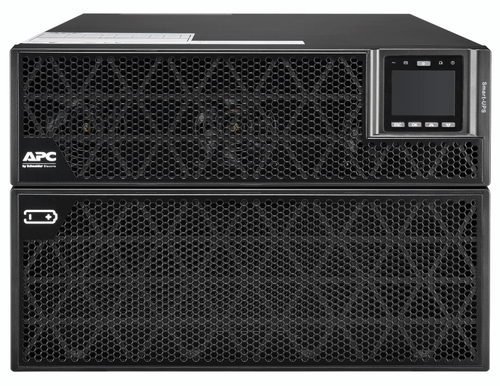

APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit, Double-conversion (Online), 20 kVA, 20000 W, Sine, 160 V, 415 V
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 20kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SRTG20KXLI |
| Our part no. | CC76603 |
| EAN | 0731304411901 |
| Category | Power & UPS › UPS |
| Weight | 176.5 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.1 Hz |
| Maximum current | 87 A |
| Number of output phases | 3 |
| Efficiency | 93% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 58 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | Hard Wire 3-wire (1PH + N + G), Hard Wire 5-wire (3PH + N + G) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 192 V |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |

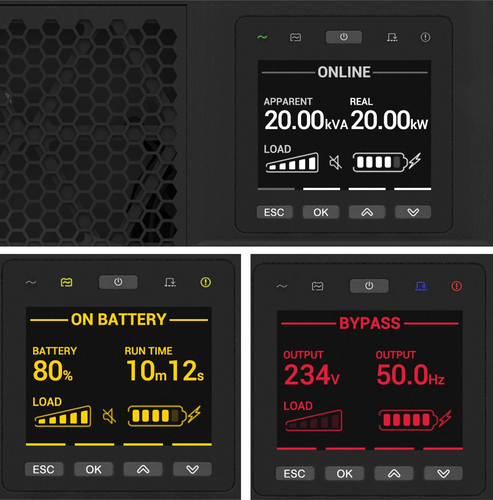

| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2011.68 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging content | |
| Cables included | RS-232 |
| Management card included | Yes |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 700 mm |
| Height | 306 mm |
| Weight | 142.5 kg |
| Packaging data | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 535 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
