Description

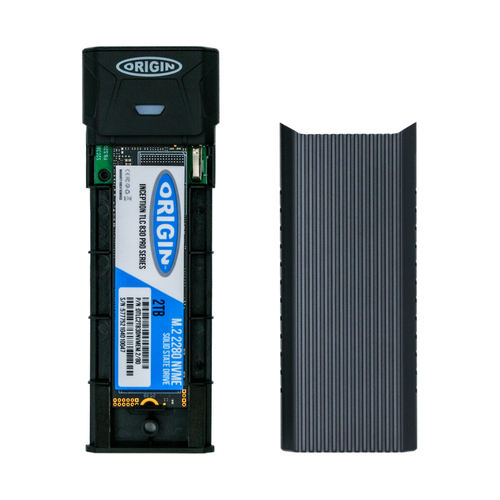

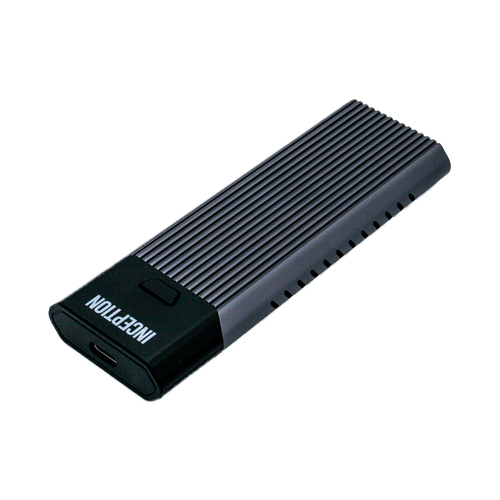

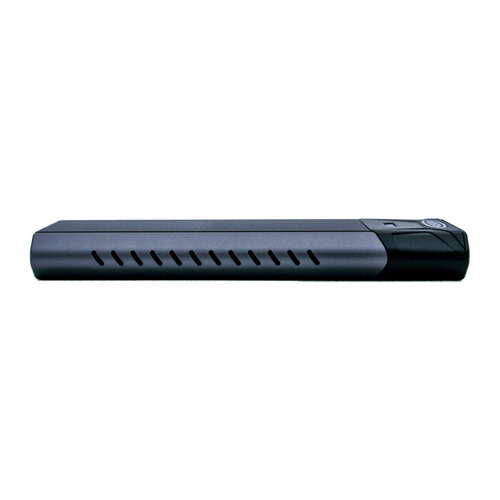

Origin Storage External SSD 512GB NVMe M.2 3D TLC 80mm with C-C & C-A Cable, 512 GB, USB Type-C, 3.2 Gen 2 (3.1 Gen 2), 1050 MB/s, 640 Gbit/s, Aluminium, Grey
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
Specifications
| Brand | ORIGIN STORAGE |
|---|---|
| Manufacturer part no. | OSEC512NVME |
| Our part no. | CC92319 |
| EAN | 5059902003461 |
| Category | Hard Drives & SSDs › SSDs |
| Weight | 0.1 kg |
| Solid state drive | |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| Memory type | 3D TLC |
| SSD capacity | 512 GB |
| NVMe | Yes |
| Read speed | 1050 MB/s |
| Write speed | 1000 MB/s |
| Random read (4KB) | 179000 IOPS |
| Random write (4KB) | 102000 IOPS |
| Seek time | 0 ms |
| Access time | 0.2 ms |
| Ports & interfaces | |
| Thunderbolt technology | No |
| USB connector | USB Type-C |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Wi-Fi | No |
| Data transfer rate | 640 Gbit/s |
| Features | |
| Housing material | Aluminium, Plastic |
| Product colour | Aluminium, Grey |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mean time between failures (MTBF) | 1000000 h |
| Compliance certificates | RoHS |
| Security | |
| Hardware encryption | No |
| Password protection | No |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| Power | |
| Operating voltage | 3.3 V |
| Power consumption (read) | 2.84 W |
| Power consumption (idle) | 0.47 W |
| Power consumption (write) | 3.22 W |
| Power consumption (average) | 3.03 W |
| Power consumption (max) | 3.22 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 105 °C |
| Operating relative humidity (H-H) | 5 - 98% |
| Storage relative humidity (H-H) | 5 - 98% |
| Operating shock | 1500 G |
| Operating vibration | 16 G |
| Maximum operating altitude | 36576 m |
| Weight & dimensions | |
| Width | 117.5 mm |
| Depth | 13.5 mm |
| Height | 40 mm |
| Packaging data | |
| Package type | Blister |
| Other features | |
| Warranty period | 5 year(s) |
| TBW rating | 100 |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
