Description

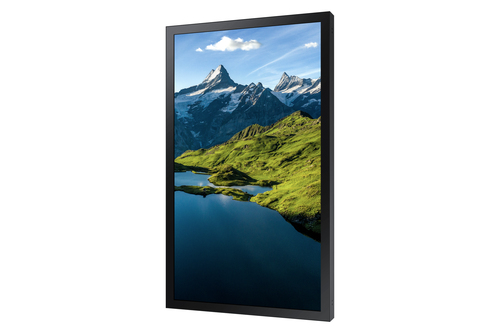

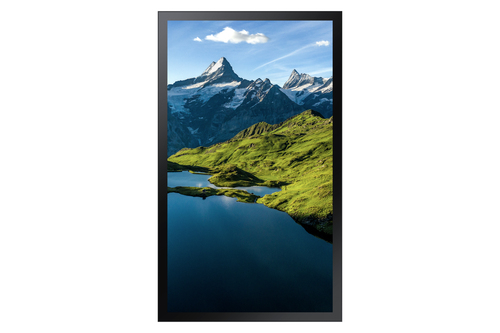

Samsung OH75A, Digital signage flat panel, 190.5 cm (75"), 3840 x 2160 pixels, 24/7
Specifications
| Brand | SAMSUNG |
|---|---|
| Manufacturer part no. | LH75OHAEBGBXEN |
| Our part no. | CD29870 |
| EAN | 8806092748798 |
| Category | Monitors & Displays › Large Format Displays |
| Weight | 0 kg |
| Display | |
| Panel type | ADS |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 3500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 14 ms |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 429.6 x 429.6 mm |
| Active display area (W x H) | 927.94 x 1649.66 mm |
| Horizontal scan range | 30 - 135 kHz |
| Vertical scan range | 30 - 75 Hz |
| Haze rate | 2.5% |
| Pixel frequency (max) | 77 MHz |
| Glass thickness | 5 mm |
| Glass film | SR Film |
| Colour gamut | 72% |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 1 |
| PC Audio in | No |
| RS-232 interface | Yes |
| RS-232C | Yes |
| Infrared data port | No |
| PC Audio out | Yes |
| Power output | No |
| 3G Dongle | No |
| Design | |
| Product design | Digital signage flat panel |
| Product colour | Black |
| VESA mounting | No |
| Bezel width (bottom) | 5.98 cm |
| Bezel colour | Black |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 1200 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Computer system | |
| Internal memory | 8 GB |
| Weight & dimensions | |
| Display width | 1774.8 mm |
| Display depth | 130 mm |
| Display height | 1053.4 mm |
| Display weight | 134 kg |
| Width | 1774.8 mm |
| Depth | 130 mm |
| Height | 1053.4 mm |
| Weight | 134 kg |
| Packaging data | |
| Package width | 1932 mm |
| Package depth | 367 mm |
| Package height | 1251 mm |
| Package weight | 150 kg |
| Packaging content | |
| Stand included | No |
| Remote control included | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Wall mountable | No |
| Other features | |
| Aspect ratio | 16:9 |
| Audio input | N |
| Audio output | Y |
| Bluetooth | No |
| Video out | No |
| Response time | 14 s |
| Housing material | Aluminium, Metal |
