Description
CyberPower PDU20BHVIEC12R, Basic, 1U, Single-phase, Horizontal/Vertical, Steel, Black

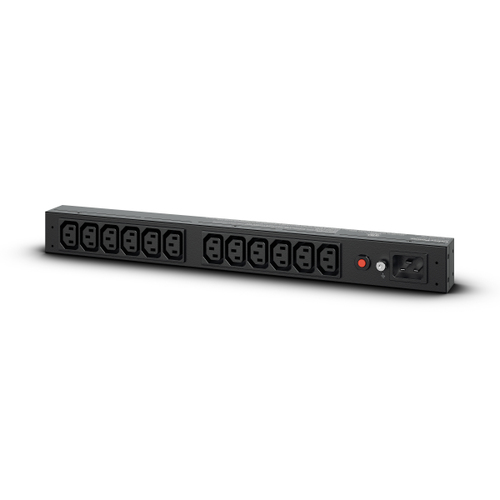

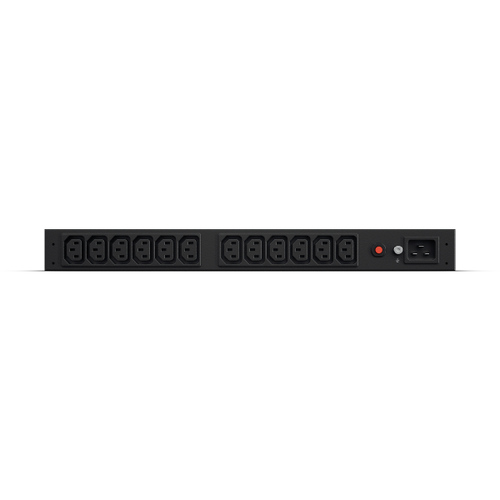

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 12 IEC-320 C13 output receptacles - Single IEC-320 C20 plug - 20-amp electrical capacity with circuit breaker - 208/230V - 50/60Hz - 1U rack mount - 10-ft. power cord
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | PDU20BHVIEC12R |
| Our part no. | CD46968 |
| EAN | 0649532901357 |
| Category | Power & UPS › PDUs |
| Weight | 2 kg |
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Housing material | Steel |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Features | |
| Cable length | 3.05 m |
| Power | |
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 200 - 240 V |
| Power protection features | Overload |
| Surge protection | Yes |
| Circuit breaker | Yes |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | UL60950_1 ETL, CSA C22.2 |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 32 - 95 °F |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 38.1 mm |
| Height | 44.5 mm |
| Weight | 900 g |
| Weight (imperial) | 0.907 kg (2 lbs) |
| Dimensions (W x D x H) (imperial) | 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75") |
| Packaging content | |
| Packaging content | PDU20BHVIEC12R, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit |
| Packaging data | |
| Package weight | 15 kg |
| Package width | 530 mm |
| Package depth | 330 mm |
| Package height | 233 mm |
| Logistics data | |
| Warranty period | 2 year(s) |
