Description

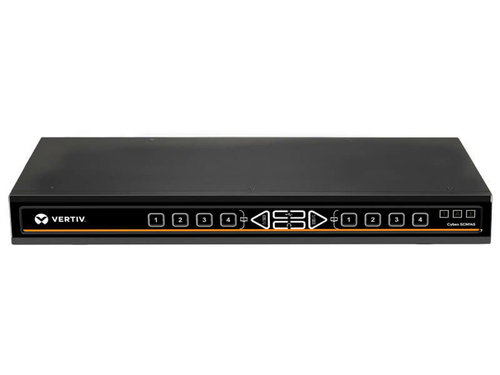

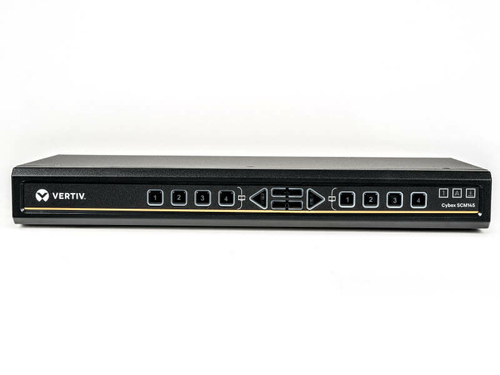

Vertiv SCM185DPH-400, 3840 x 2160 pixels, 4K Ultra HD, Black
The Vertiv™ Cybex™ SCM145DPH secure desktop matrix KVM eliminates the need for multiple monitors, keyboards, mice and cables. The Cybex™ secure desktop matrix switch provides users flexibility by offering a universal video port, freeze DPP and audio channel capabilities as well as touch screen support. The Cybex SCM145DPH comes with native video support up to UHD 4K @ 60Hz and smart-card (CAC) or biometric readers for authentication on any attached computer.
- Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0 - Secure KVM switching allows for instantaneous interaction between two computers from different security classifications - Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders - Native video supports up to UHD 4K at 60 Hz - Unidirectional data flow of keyboard, mouse, video, and audio
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | SCM185DPH-400 |
| Our part no. | CD75492 |
| EAN | 0636430089676 |
| Category | Networking › Other (0406) |
| Weight | 3.8 kg |

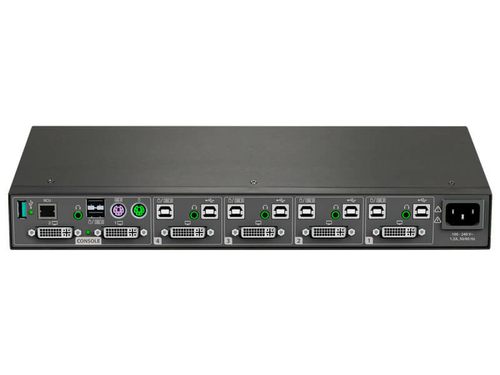

| Ports & interfaces | |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| USB 2.0 Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, USB A |
| Console DisplayPorts ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 3 |
| Headphone outputs | 1 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Design | |
| Product colour | Black |
| Certification | FCC class A, CE, TUV US, TUV Canada, RCM, VCCI |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 439 mm |
| Depth | 185 mm |
| Height | 43 mm |
| Weight | 2.5 kg |
