Description

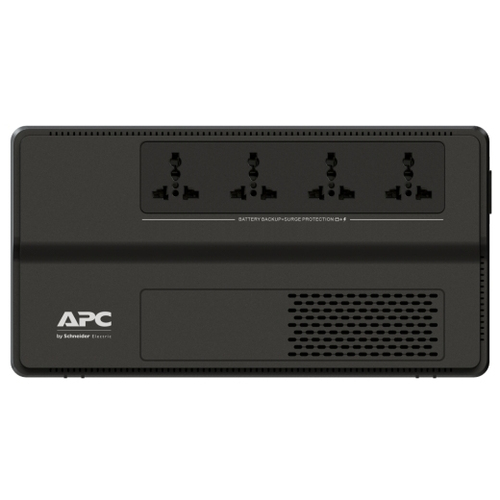

APC BV800I-MSX, Line-Interactive, 0.8 kVA, 450 W, Stepwise, 170 V, 280 V
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Wall-mount holes Allow flexibility for setup in tight locations and mounting on wall or other surfaces.
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable Provides temporary battery power when the utility power is out.
Advanced Safety Features Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Battery backup and surge protection Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.
Audible alarms Provides notification of changing utility power and UPS power conditions
LED Indicators Provide easy-to-read status of the unit and utility power conditions.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | BV800I-MSX |
| Our part no. | CD76641 |
| EAN | 0731304344087 |
| Category | Power & UPS › UPS |
| Weight | 5.7 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.8 kVA |
| Output power | 450 W |
| Waveform | Stepwise |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 156 J |
| Response time | 6 ms |
| Noise level | 40 dB |
| Surge protection | Yes |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | Type A, Type B, Type E / F, Type C, Type I, Type G (BS 1363) |
| AC outlets quantity | 4 AC outlet(s) |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 8 h |
| Cold start | Yes |
| Design | |
| Cable length | 1.5 m |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 2032.1 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Certification | CE |
| Weight & dimensions | |
| Width | 161 mm |
| Depth | 305 mm |
| Height | 93 mm |
| Weight | 5.3 kg |
| Packaging data | |
| Package width | 143 mm |
| Package depth | 373 mm |
| Package height | 237 mm |
| Package weight | 5.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
