Description
Neomounts WL30S-850BL12 TV mount wall 24-65" - fixed - lockable - fast installation, 61 cm (24"), 165.1 cm (65"), 50 x 50 mm, 200 x 200 mm, Steel, Black

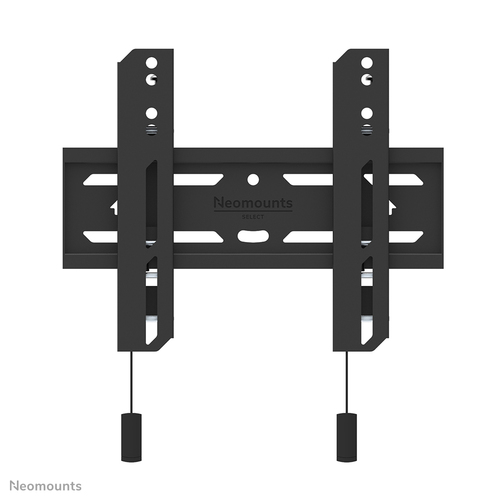

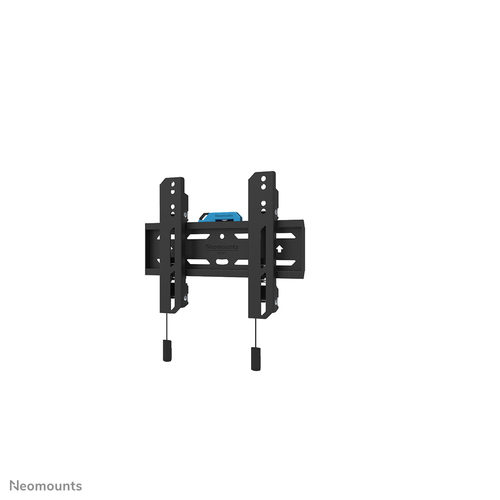

The Neomounts WL30S-850BL12 LEVEL is a fixed wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. Height and level adjustment is available for the perfect installation.
The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 50x50 to 200x200mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).
The WL30S-850BL12 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | WL30S-850BL12 |
| Our part no. | CE00791 |
| EAN | 8717371448776 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 2 kg |
| Mounting | |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 61 cm (24") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 40 kg |
| Maximum screen size | 165.1 cm (65") |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 200,100 x 100,100 x 150,100 x 75,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,50 x 50,75 x 75,75 x 100,75 x 200 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 20 mm |
| Type | Fixed |

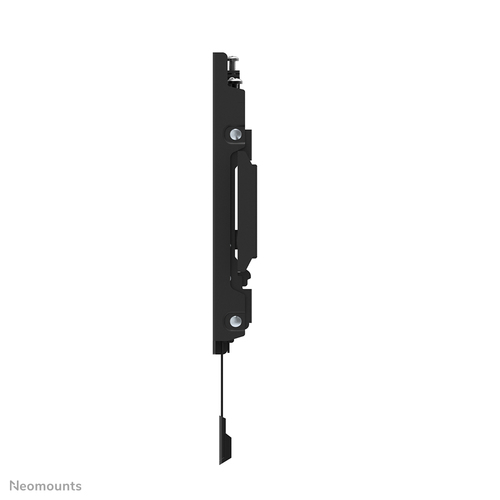

| Distance to the wall (max) | 3.3 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Package net weight | 1.8 kg |
| Lockable | Security screw included |
| Weight & dimensions | |
| Width | 283 mm |
| Depth | 33 mm |
| Depth (max) | 3.3 cm |
| Height | 225 mm |
| Weight | 1.2 kg |
| Packaging data | |
| Package width | 500 mm |
| Package depth | 158 mm |
| Package height | 74 mm |
| Package weight | 1.8 kg |
| Logistics data | |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 240 mm |
| Master (outer) case height | 343 mm |
| Master (outer) case gross weight | 11.4 kg |
| Master (outer) case net weight | 7.7 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 144 pc(s) |
