Description

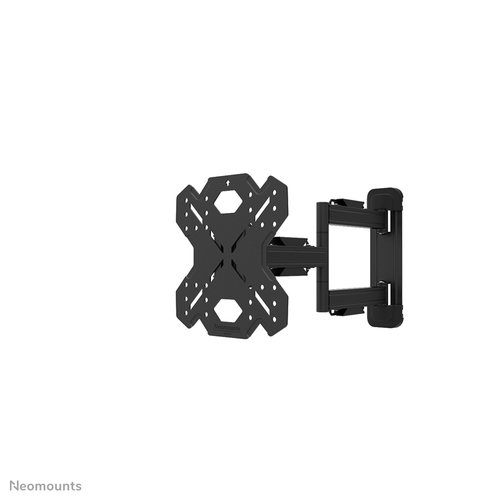

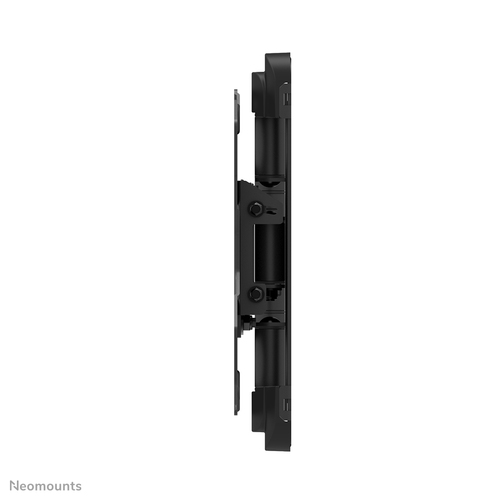

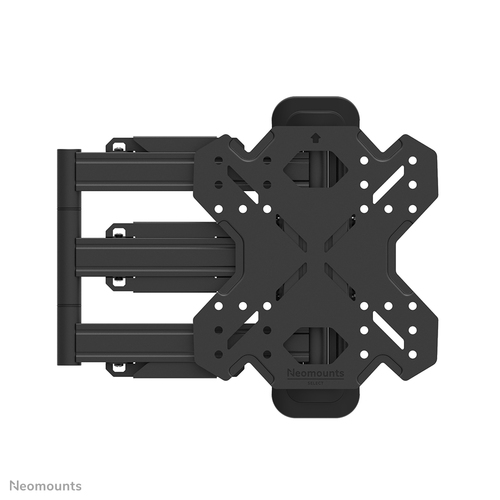

Neomounts WL40S-850BL12 TV mount wall 32-55" - full motion - fast installation, 100 x 100 mm, 200 x 200 mm, -2 - 12°, 0 - 60°, Steel, Black
The Neomounts WL40S-850BL12 LEVEL is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (60°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200mm.
The WL40S-850BL12 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | WL40S-850BL12 |
| Our part no. | CE00801 |
| EAN | 8717371448790 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 6 kg |
| Mounting | |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 40 kg |
| Maximum screen size | 139.7 cm (55") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 200,100 x 100,100 x 150,200 x 100,200 x 200 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Swivelling | Yes |
| Swivel angle | 60° |
| Swivel angle range | 0 - 60° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Type | Full motion |
| Distance to the wall (max) | 55.5 cm |
| Distance to the wall (min) | 4.7 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Package net weight | 6.1 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Packaging content | |
| Mounting kit | Yes |
| Number of wrenches included | 1 |
| Hex key included | Yes |
| Weight & dimensions | |
| Width | 252 mm |
| Depth | 47 mm |
| Depth (max) | 4.7 cm |
| Height | 271 mm |
| Weight | 5 kg |
| Packaging data | |
| Package width | 433 mm |
| Package depth | 342 mm |
| Package height | 62 mm |
| Package weight | 6.1 kg |
| Logistics data | |
| Master (outer) case width | 453 mm |
| Master (outer) case length | 204 mm |
| Master (outer) case height | 362 mm |
| Master (outer) case gross weight | 18.8 kg |
| Master (outer) case net weight | 15.7 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 90 pc(s) |
