Description
Neomounts WL35-550BL16 TV mount wall 42-86" - tiltable - easy install, 2.18 m (86"), 100 x 100 mm, 600 x 400 mm, 0 - 12°, Steel, Black

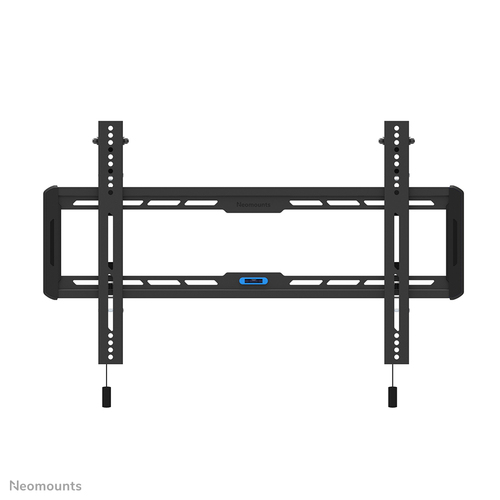

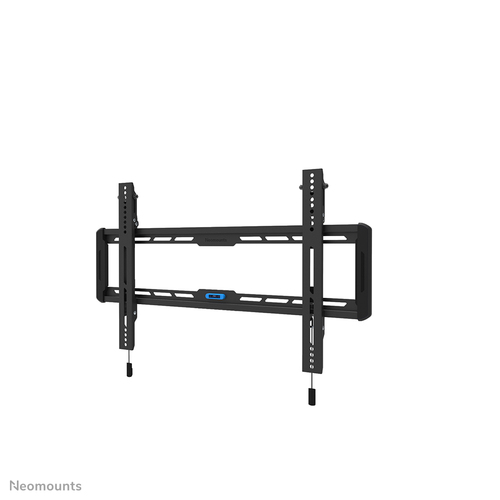

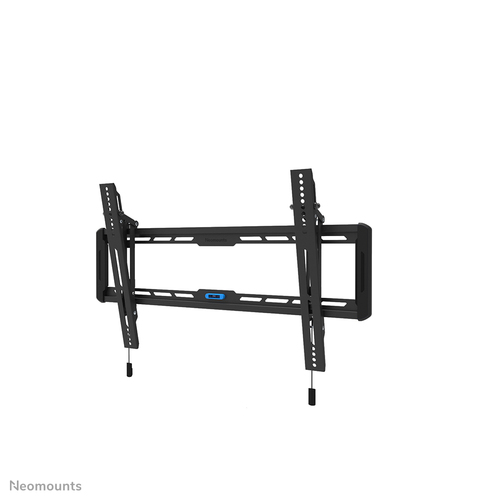

The Neomounts WL35-550BL16 LEVEL is a tiltable wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. The versatile tilt (12°) technology allows you to create the optimum viewing angle.
The LEVEL-550 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm.
The WL35-550BL16 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | WL35-550BL16 |
| Our part no. | CE00811 |
| EAN | 8717371448738 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 3 kg |
| Mounting | |
| Maximum weight capacity | 60 kg |
| Minimum screen size | 106.7 cm (42") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 60 kg |
| Maximum screen size | 2.18 m (86") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 12° |
| Distance to the wall (max) | 3.3 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Package net weight | 2.9 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Weight & dimensions | |
| Width | 735 mm |
| Depth | 33 mm |
| Depth (max) | 3.3 cm |
| Height | 425 mm |
| Weight | 2.25 kg |
| Packaging data | |
| Package width | 758 mm |
| Package depth | 208 mm |
| Package height | 44 mm |
| Package weight | 2.9 kg |
| Logistics data | |
| Master (outer) case width | 773 mm |
| Master (outer) case length | 285 mm |
| Master (outer) case height | 230 mm |
| Master (outer) case gross weight | 17.7 kg |
| Master (outer) case net weight | 12.5 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 144 pc(s) |
