Description

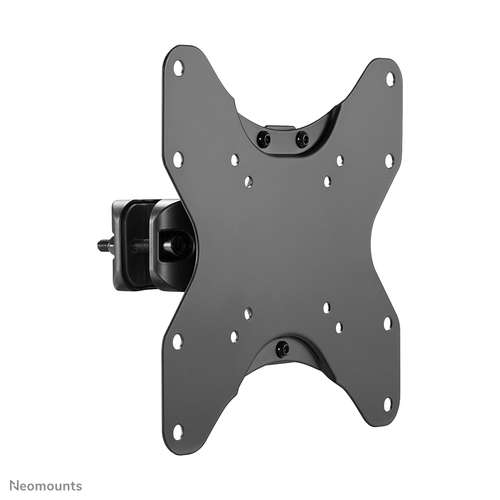

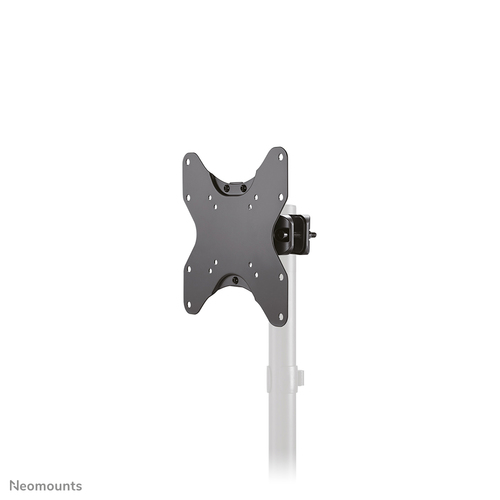

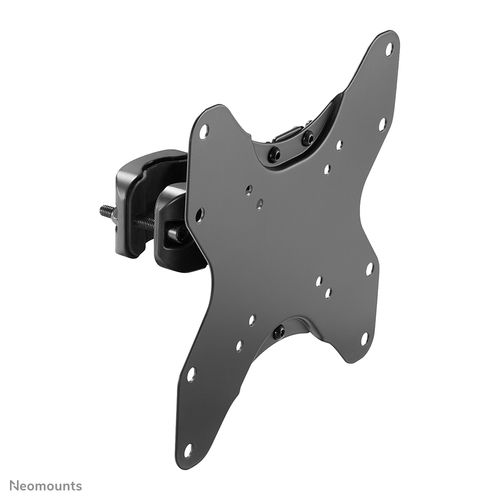

Neomounts FL40-430BL12 TV pole mount 23-42" - diam. 28-50 mm, 75 x 75 mm, 200 x 200 mm, -15 - 10°, 0 - 120°, Steel, Black
The Neomounts FL40-430BL12 is a full motion pole mount for flat screens up to 42" with a maximum weight capacity of 25 kg. The versatile tilt (25°) and swivel (120°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The FL40-430BL12 has a depth of 7,6 cm and is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | FL40-430BL12 |
| Our part no. | CE00819 |
| EAN | 8717371448998 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 1.5 kg |
| Mounting | |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 58.4 cm (23") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 25 kg |
| Maximum screen size | 106.7 cm (42") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 100,200 x 200,75 x 75 |
| Mounting type | Pole |
| Ergonomics | |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 10° |
| Swivelling | Yes |
| Swivel angle | 120° |
| Swivel angle range | 0 - 120° |
| Rotating | Yes |
| Distance to the wall (max) | 7.6 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Package net weight | 1.6 kg |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 76 mm |
| Depth (max) | 7.6 cm |
| Height | 226 mm |
| Weight | 1.42 kg |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 245 mm |
| Package height | 80 mm |
| Package weight | 1.6 kg |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 260 mm |
| Master (outer) case gross weight | 13.6 kg |
| Master (outer) case net weight | 11.4 kg |
| Products per master (outer) case | 8 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 192 pc(s) |
