Description

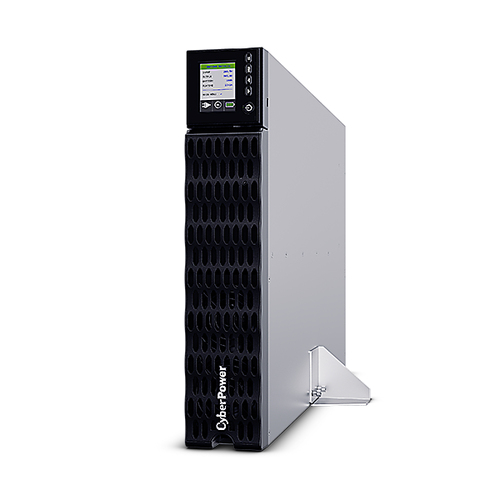

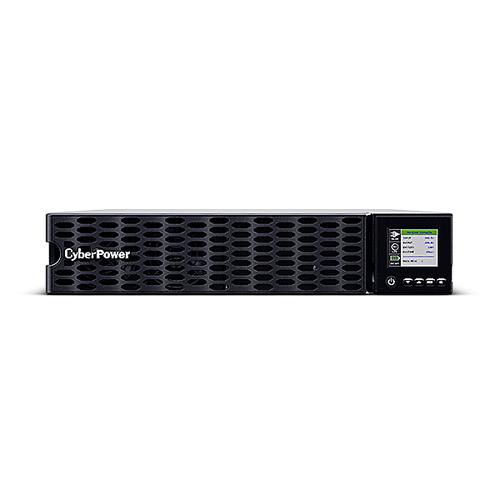

CyberPower OL6KERTHD, Double-conversion (Online), 6 kVA, 6000 W, Pure sine, 200 V, 240 V
OL6KERTHD
CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs. The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | OL6KERTHD |
| Our part no. | CE23686 |
| EAN | 4712856275919 |
| Category | Power & UPS › UPS |
| Weight | 42 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current | 32 A |
| Surge energy rating | 2430 J |
| Response time | 0 ms |
| Heat dissipation | 1613 BTU/h |
| Efficiency (ECO mode) | 97% |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Total Harmonic Distortion (THD) (linear load) | 3% |
| Total Harmonic Distortion (THD) (non-linear load) | 5% |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Ports & interfaces | |

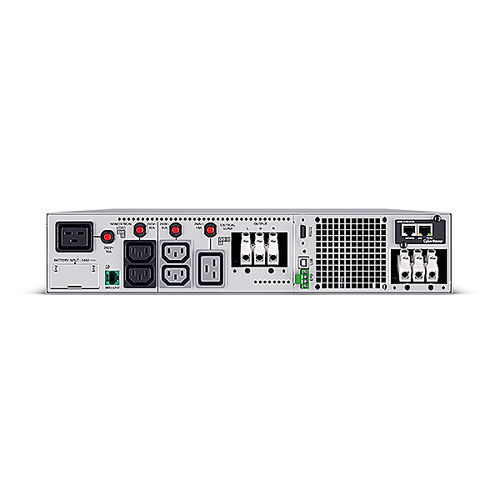

| AC outlet types | C13 coupler, C19 coupler, Terminal |
| Power plug | Terminal |
| AC outlets quantity | 7 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 2.4 min |
| Typical backup time at half load | 6.2 min |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Housing material | Metal |
| Rack capacity | 2U |
| Product colour | Black, Grey |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Certificates | |
| Compliance certificates | CE, EAC, RCM, RoHS |
| Certification | CE, EAC, RCM |
| Packaging content | |
| Cables included | Serial, USB cable |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 433 mm |
| Depth | 720 mm |
| Height | 86.5 mm |
| Weight | 42 kg |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 1100 mm |
| Package height | 335 mm |
| Package weight | 53 kg |
| Logistics data | |
| Harmonized System (HS) code | 8504408690 |
| Country of origin | China |
| Other features | |
| Battery type | RBP0144 |
