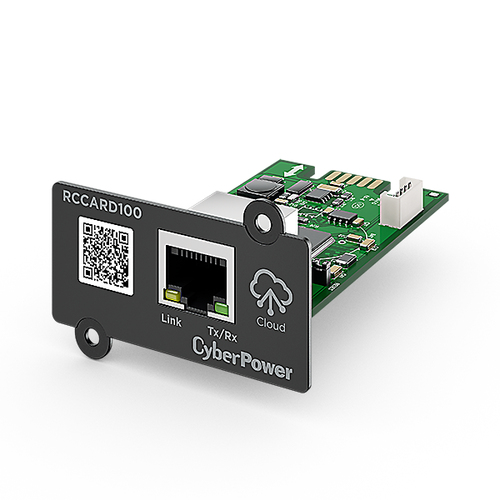

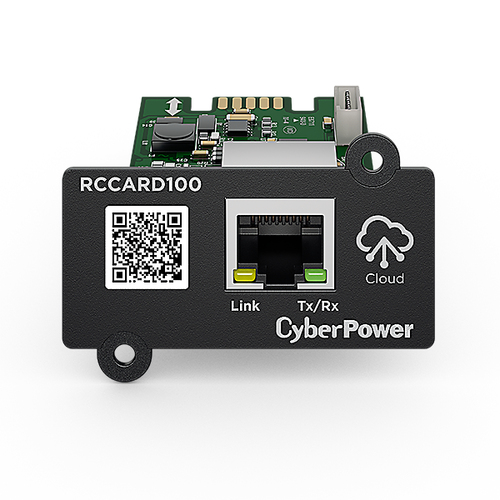

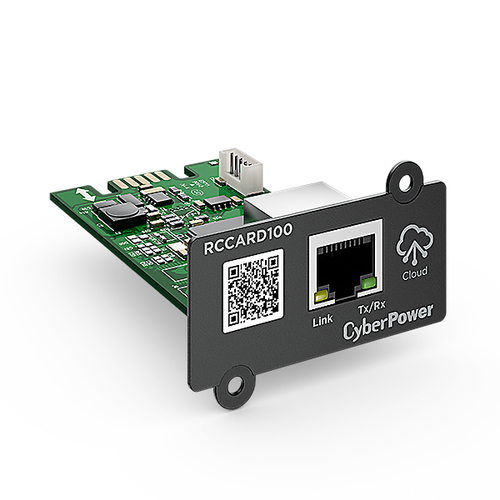

CyberPower RCCARD100 network card Internal Ethernet 100 Mbit/s

Description

CyberPower RCCARD100, Internal, Wired, Ethernet, 100 Mbit/s, Black, Green, Metallic

CyberPower RCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.

The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.

Specifications

BrandCYBERPOWER
Manufacturer part no.RCCARD100
Our part no.CE23693
EAN4712856274363
CategoryNetworking › Network Cards & Line Cards
Weight0.1 kg
Ports & interfaces
Connectivity technologyWired
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
Network
Maximum data transfer rate100 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3u
Ethernet LANYes
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100BaseT(X)
Design
Component forPC
Product colourBlack, Green, Metallic
InternalYes
Plug and PlayYes
LED indicatorsTX / RX, Link
Country of originChina
CertificationCE, FCC Class B, RoHS
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Sustainability
Sustainability complianceYes
Weight & dimensions
Width54 mm
Depth76.5 mm
Height36.1 mm
Weight31 g
Packaging data
Package width170 mm
Package depth60 mm
Package height165 mm
Package weight300 g
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code8473302000
