Description

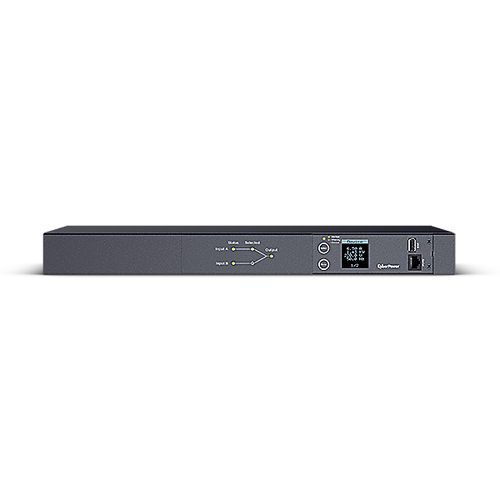

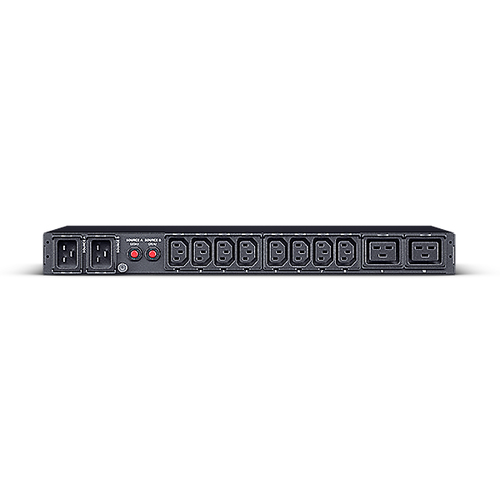

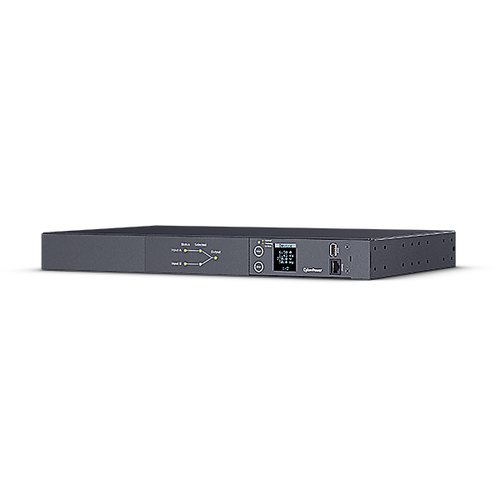

CyberPower PDU24005, Metered, 1U, Single-phase, Horizontal, Steel, Black
CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.
The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | PDU24005 |
| Our part no. | CE23698 |
| EAN | 4711027799797 |
| Category | Power & UPS › PDUs |
| Weight | 5.5 kg |
| Design | |
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| Features | |
| LED indicators | Link, Status |
| Cable length | 3.05 m |
| Management features | |
| Firmware upgradeable | Yes |
| Power | |
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 12 A |
| Nominal output voltage | 200 - 240 V |
| Power protection features | Overload |
| Circuit breaker | Yes |
| Certificates | |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS, UL |
| Certification | FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 95 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4000 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 32 - 113 °F |
| Weight & dimensions | |
| Width | 433 mm |
| Depth | 215 mm |
| Height | 44 mm |
| Weight | 3.2 kg |
| Packaging content | |
| Packaging content | PDU24005, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable |
| Packaging data | |
| Package weight | 6 kg |
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 125 mm |
| Logistics data | |
| Warranty period | 2 year(s) |
