Description

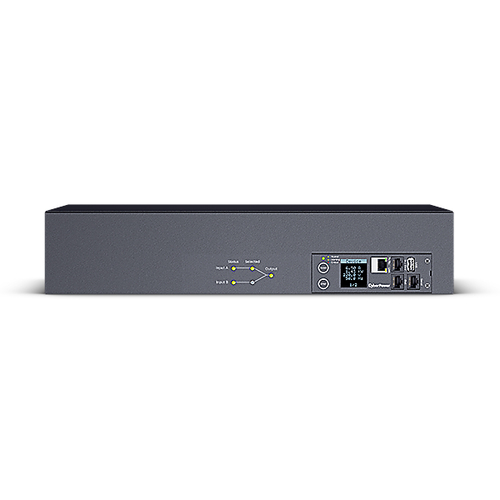

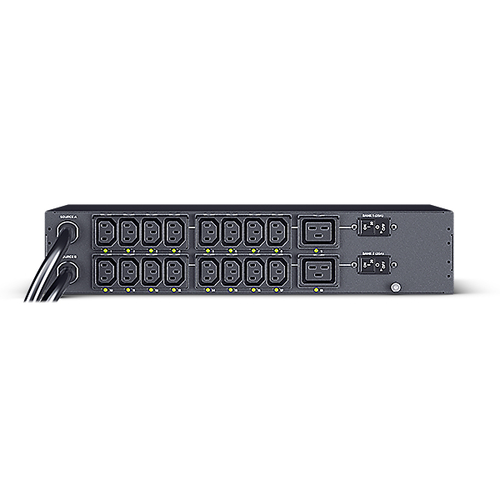

CyberPower PDU44302, Managed, Switched, 2U, Single-phase, Horizontal, Steel, Black
CyberPower PDU44302 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.
The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
- Real-time Local/Remote Monitoring and Switching - Dual Inputs - Digital Real-time Load Display - Hot-swappable LCD Design - Firmware Upgrade via USB - User-upgradeable Firmware - Adjustable Mounting Brackets - IEC Receptacle Locking - Controllable Receptacles with Power Sequencing - Industrial-grade Metal Housing - User Configurable Color LCD - LED Status Indicator - Support ENVIROSENSOR - PowerPanel® Management Software - Cord Retention Tray
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | PDU44302 |
| Our part no. | CE23701 |
| EAN | 4711027799650 |
| Category | Power & UPS › PDUs |
| Weight | 10 kg |
| Design | |
| PDU types | Managed, Switched |
| Type | Single-phase |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 18 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 1 |
| Features | |
| Daisy chain | Yes |
| LED indicators | Yes |
| Cable length | 3.05 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | USB |
| Power | |
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 433 mm |
| Depth | 215 mm |
| Height | 88 mm |
| Weight | 7.8 kg |
| Packaging content | |
| Cables included | Serial |
| Manual | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Package weight | 10.8 kg |
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 185 mm |
| Logistics data | |
| Country of origin | China |
