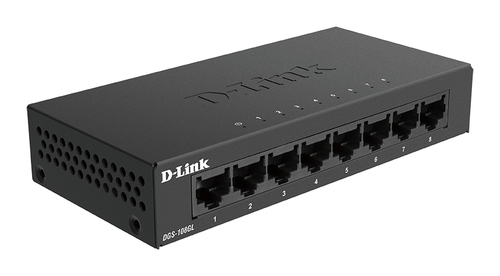

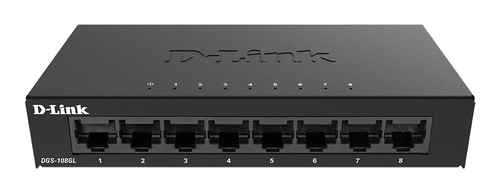

D-Link DGS-108GL 8-Port Gigabit Unmanaged Desktop Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Desktop

Effortless Gigabit networking. Easily upgrade or extend your home or small business network with high-speed energy-saving Gigabit connectivity. It’s optimised for intensive 4K video streaming, surveillance, large file downloads and conferencing.

Plug-and-play. Easily extend a network. The DGS-108GL is a plug-and-play device that requires no advanced technical configuration. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.

Effortless traffic optimisation. With Gigabit transfer speeds on each port, you can rapidly transfer files between connected computers and devices. The switch features 802.1p Quality of Service (QoS), which automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.

Designed for life, built to last. The DGS-108GL features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving. The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DGS-108GL is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.

Specifications

BrandD-LINK
Manufacturer part no.DGS-108GL/B
Our part no.CE42291
EAN0790069458613
CategoryNetworking › Unmanaged Switches
Weight0.4 kg
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Web-based managementNo
Cloud-managedNo
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Flow control supportYes
Auto MDI/MDI-XYes
Data transmission
Switching capacity16 Gbit/s
Forwarding rate11.9 Mpps
MAC address table4000 entries
Store-and-forwardYes
Number of queues8
Jumbo frames supportYes
Jumbo frames9216
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Design
StackableYes
Form factorDesktop
Product colourBlack
Housing materialMetal
LED indicatorsActivity, Link, Power
Performance
Mean time between failures (MTBF)1402428 h
Power
Power sourceDC

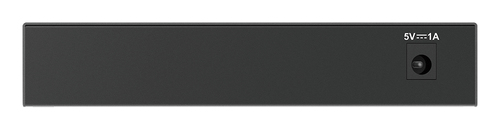

DC input voltage5 V
Input current1 A
Power consumption (max)4.31 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation14.7 BTU/h
Weight & dimensions
Width140 mm
Depth67 mm
Height26 mm
Weight240 g
Certificates
Compliance certificatesCE, RoHS
CertificationCE; FCC; RoHS
Logistics data
Harmonized System (HS) code85176990
