Description
Neomounts DS70-750BL1 Monitor arm 17-27" - gas spring, Clamp/Grommet, 7 kg, 43.2 cm (17"), 68.6 cm (27"), 100 x 100 mm, Black

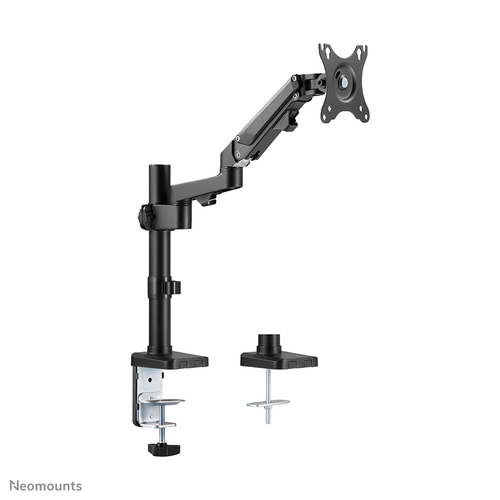

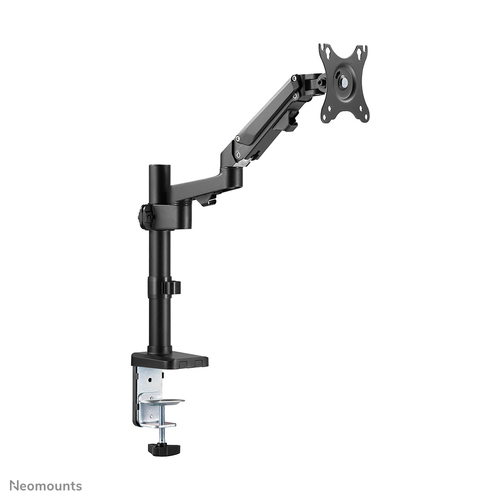

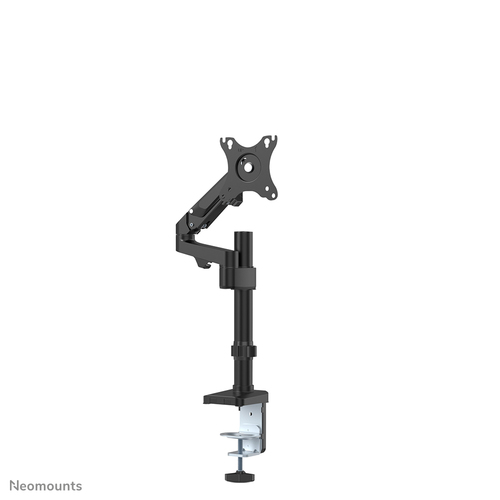

The Neomounts DS70-750BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.
The DS70-750BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | DS70-750BL1 |
| Our part no. | CE46735 |
| EAN | 8717371449193 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 0 kg |
| Mounting | |
| Maximum weight capacity | 7 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 7 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.5 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 73 - 481 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 440 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Pivot angle | -180 - 180° |
| Cable management | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Orientation | Landscape/Portrait |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 440 mm |
| Height | 679 mm |
| Weight | 2.54 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 240 mm |
| Package depth | 116 mm |
| Package height | 365 mm |
| Package net weight | 3.1 kg |
| Package weight | 3.1 kg |
| Other features | |
| Minimum weight | 2 kg |
| Width adjustment range | 0 - 378 mm |
| Logistics data | |
| Master (outer) case width | 495 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 365 mm |
| Master (outer) case gross weight | 19.5 kg |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 15.2 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 96 pc(s) |
