Description

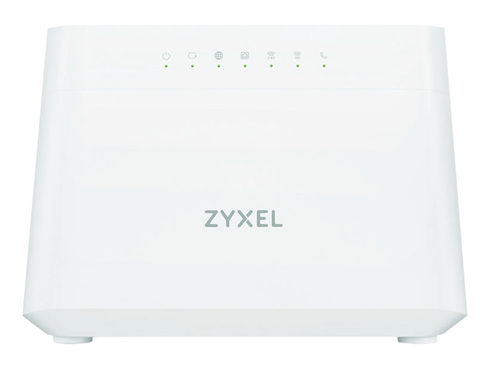

Zyxel DX3301-T0, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, ADSL, White, Tabletop router
The Zyxel DX3301-T0/DX3300-T0/EX3301-T0/EX3300-T0 Series provides high-speed internet access with QoS support to meet the worldwide market demand for triple-play services. With the built-in 2x2 802.11ax WLAN function and Zyxel MPro Mesh TM Solutions, the Series provides seamless WiFi experience and superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services.
WiFi 6 technology for superior lag-free performance Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.
Specifications
| Brand | ZYXEL |
|---|---|
| Manufacturer part no. | DX3301-T0-EU01V1F |
| Our part no. | CE50411 |
| EAN | 4718937614950 |
| Category | Networking › Wireless Access Points |
| Weight | 0.7 kg |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q |
| Auto MDI/MDI-X | Yes |
| Port forwarding | Yes |
| Automatic channel selection | Yes |
| Dynamic DNS (DDNS) | Yes |
| Mobile network | |
| 3G | No |
| 4G | No |
| 5G | No |
| DSL features | |
| ADSL | Yes |
| ADSL2+ | Yes |
| VDSL | Yes |
| VDSL2 | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
| Management features | |
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Security | |
| Firewall | Yes |
| MAC address filtering | Yes |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Voice codecs | G.711a, G.722, G.726, G.729 |
| Design | |
| Product colour | White |
| Indication light | Yes |
| LED indicators | LAN, Power, WAN, WLAN, WPS |
| On/off switch | Yes |
| Product type | Tabletop router |
| Antenna | |
| Antenna design | Internal |
| Power | |
| Power source type | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 35 mm |
| Height | 153 mm |
| Weight | 387 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
