Description

j5create JCD542-N USB-C® Dual HDMI™ Docking Station, includes 2x HDMI ports and 4x USB ports, Grey & Black, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 10,100,1000 Mbit/s, Black, Grey, MicroSD (TransFlash), SD, 4K Ultra HD

This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.

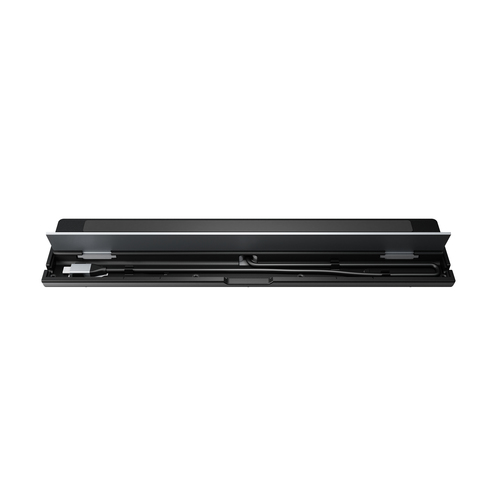

This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.

Specifications

BrandJ5CREATE
Manufacturer part no.JCD542-N
Our part no.CE58395
EAN4712795086041
CategoryDocks, Bags & Racks › Docking Stations
Weight0.4 kg
Ports & interfaces
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity2
Combo headphone/mic portYes
USB Type-C DisplayPort Alternate ModeYes
Network
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Performance
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
HD type4K Ultra HD
Number of displays supported2
Maximum refresh rate30 Hz
Product colourBlack, Grey
Hub interfaces3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Housing materialAluminium
Country of originTaiwan
Power
Power supply typeUSB
Output voltage20 V
Output current0.9 A
Power consumption (typical)4.5 W
Software
Windows operating systems supportedWindows 10
Mac operating systems supportedMac OS X 10.11 El Capitan
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 65 °C
Weight & dimensions
Width82.5 mm
Depth350.2 mm
Height22 mm
Weight307 g
Packaging data
Quantity per pack1 pc(s)
Package width88.3 mm
Package depth358 mm
Package height28 mm
Package weight405 g
Packaging content
Cables includedUSB Type-C
Quick start guideYes
ManualYes
Packaging content1 x JCD542 USB-C Dual HDMI Docking Station, 1 x Quick Installation Guide (QIG)
Technical details
Warranty period2 year(s)
Other features
Cable length0.45 m
Maximum operating temperature40 °C
