Description

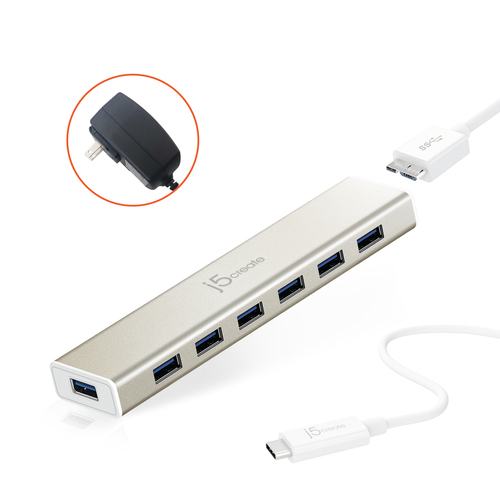

j5create JCH377 USB-C® 7- Port Hub - EU/UK, Metallic Champagne, USB 3.2 Gen 1 (3.1 Gen 1) Micro-B, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, 2048 x 1152, Silver, Aluminium
The JCH377 USB™ 3.0 SuperSpeed 7-Port HUB allows up to seven USB™ 3.0 devices to be connected simultaneously at a transmission speed of 5 Gbps, while still providing connectivity and support for the older USB™ 2.0 (480 Mbps) and 1.1 (12 Mbps) devices. It works with high-bandwidth SuperSpeed USB™ 3.0 devices, such as external disk drives, high-resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more. In addition, it supports fast charging for smartphones, tablets and iPads®.
Specifications
| Brand | J5CREATE |
|---|---|
| Manufacturer part no. | JCH377-N |
| Our part no. | CE58401 |
| EAN | 4712795080957 |
| Category | Networking › USB Hubs & Adapters |
| Weight | 0.3 kg |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Micro-B |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| Ports quantity | 7 |
| Features | |
| Data transfer rate | 5000 Mbit/s |
| Supported graphics resolutions | 2048 x 1152 |
| Product colour | Silver |
| Housing material | Aluminium |
| Cable length | 0.915 m |
| Plug and Play | Yes |
| Country of origin | Taiwan |
| Power | |
| Power source type | DC, USB |
| Power consumption (typical) | 20 W |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 0.5 A |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Compatible operating systems | Microsoft® Windows® 10 macOS® 10.11 and later Linux® Chrome OS™ |
| Weight & dimensions | |
| Width | 32.8 mm |
| Depth | 14.8 mm |
| Height | 150 mm |
| Weight | 69 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 42 mm |
| Package weight | 370.5 g |
| Package type | Box |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB Type-C |
| Quick installation guide | Yes |
| Quick start guide | Yes |
| Packaging content | 1 x JCH377 USB-C 3.0 7-Port HUB, 1 x USB 3.0 Micro-B to USB-CCable, 1 x Power Adapter 5V / 4A, 1 x Quick Installation Guide |
| Performance | |
| Export Control Classification Number (ECCN) | EAR99 |
| Commodity Classification Automated Tracking System (CCATS) | 8471.80.0000 |
| Design | |
| Cable colour | White |
| Logistics data | |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 235 mm |
| Master (outer) case gross weight | 7.72 kg |
| Products per master (outer) case | 18 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795080951 |
| Shipping (inner) case width | 21.2 cm |
| Shipping (inner) case length | 26.9 cm |
| Shipping (inner) case height | 13 cm |
| Shipping (inner) case gross weight | 2.41 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Technical details | |
| Box contents | 1 x JCH377 USB-C™ 3.0 7-Port HUB, 1 x USB™ 3.0 Micro-B to USB-C™Cable, 1 x Power Adapter 5V / 4A, 1 x Quick Installation Guide |
| Warranty period | 2 year(s) |
| Other features | |
| Technical features | Aluminum housing with a compact design makes it perfect for travel, Overcurrent protection supporting up to 900 mA per port |
