Description
j5create JVA02 Live Capture Adapter HDMI™ to USB-C™ with Power Delivery, Black, Black, USB 3.2 Gen 1 (3.1 Gen 1), 1920 x 1080 pixels, USB Type-C 3.1 Gen1, 16:9, Aluminium

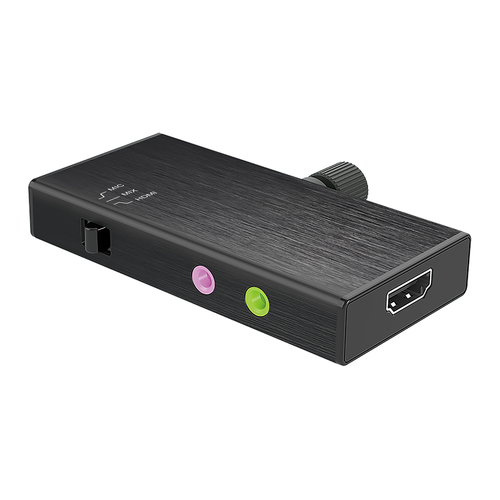

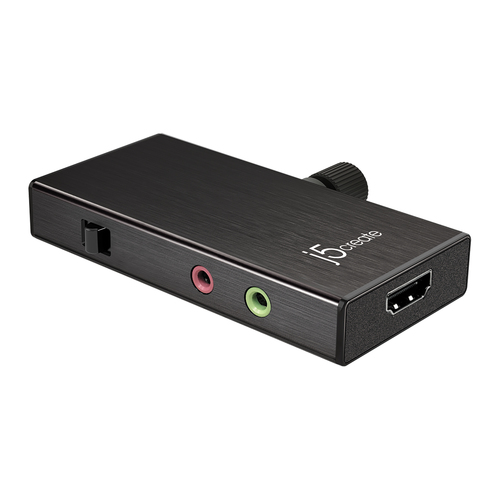

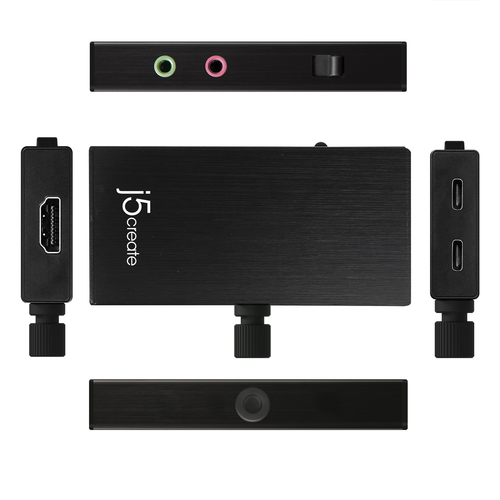

Perfect for live streaming — The JVA02 is a lightweight, stylish and powerful HDMI™ capture card. It consumes very low power, yet can capture 1080p with 60 frames of uncompressed video under USB™ 3.0. It can be broadcast continuously with three mixing modes and Power Delivery 3.0. Connect the JVA02 to your cold shoe adapter on your camera for the perfect combination of ease-of-use and functionality.
Specifications
| Brand | J5CREATE |
|---|---|
| Manufacturer part no. | JVA02-N |
| Our part no. | CE58406 |
| EAN | 4712795082982 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0.1 kg |
| Performance | |
| Product colour | Black |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Interface | USB Type-C 3.1 Gen1 |
| Plug and Play | Yes |
| Supported aspect ratios | 16:9 |
| Housing material | Aluminium |
| Cable length | 1 m |
| Country of origin | Taiwan |
| Special features | Power Delivery 3.0 lets you stream live without interruption Professional listening and live audio mixing with built-in audio mixer |
| Video | |
| Analog signal format system | Not supported |
| Maximum frame rate | 60 fps |
| Supported video modes | 480i, 480p, 720i, 720p, 1080i, 1080p |
| Audio | |
| Supported audio channels | 2 |
| File formats | |
| Video compression formats | AVC, H.264, M-JPEG, MP4 |
| Ports & interfaces | |
| USB port | No |
| USB connector type | USB Type-A, USB Type-C |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI in | 1 |
| Headphone outputs | 1 |
| Power | |
| Power supply type | USB |
| Power consumption | 2.5 W |
| Output voltage | 20 V |
| Output current | 0.5 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Technical details | |
| Warranty period | 2 year(s) |
| Weight & dimensions | |
| Width | 133.8 mm |
| Depth | 17.5 mm |
| Height | 64.5 mm |
| Weight | 51.5 g |
| Package length | 9.5 cm |
| Other features | |
| Compatible operating systems | Windows® 7 or later (Driver installation is required on Windows® 7) |
| Master (outer) case width | 225 mm |
| Master (outer) case height | 180 mm |
| Inner carton dimensions (W x D x H) | 105 x 150 x 160 mm |
| Maximum data transfer rate | 5000 Mbit/s |
| Packaging data | |
| Package weight | 148.5 g |
| Package height | 25 mm |
| Package width | 145 mm |
| Package depth | 95 mm |
| Package type | Box |
| Packaging content | |
| Cables included | USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| Quick installation guide | Yes |
| Manual | Yes |
| Packaging content | 1 x JVA02 Live Capture UVC HDMI to USB Video Capture, 2 x Cold shoe adapter, 1 x USB-C 2.0 to USB-C cable, 1 x USB-C 3.0 to USB Type-A cable, 1 x User Manual, 1 x Quick Installation Guide |
| Logistics data | |
| Shipping (inner) case gross weight | 810 g |
| Products per shipping (inner) case | 5 pc(s) |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case gross weight | 3.7 kg |
| Master (outer) case length | 321 mm |
| Master (outer) case GTIN (EAN/UPC) | 24712795082986 |
